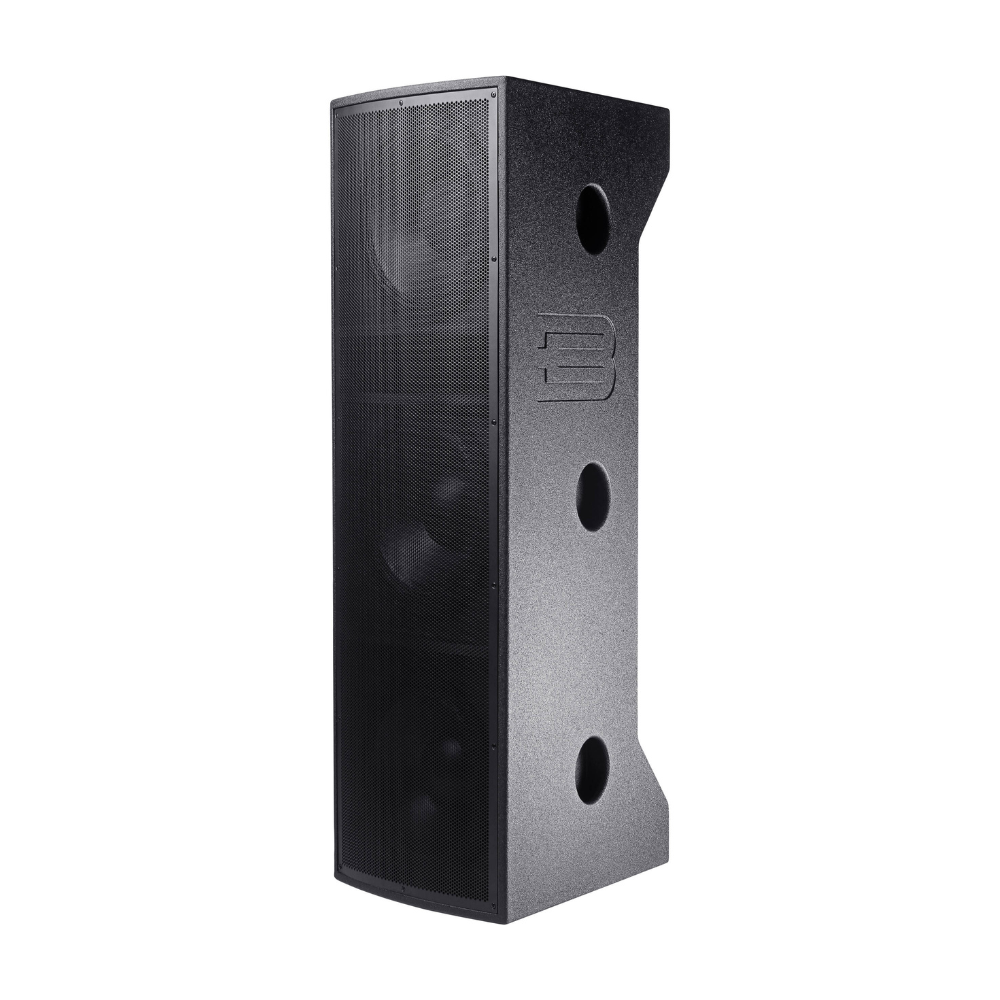

BASSBOSS AT312-MK3 powered point-source loudspeaker at a front three-quarter angle with black steel grille
BASSBOSS AT312-MK3 triple 12-inch PA top angled to highlight its textured black side enclosure
BASSBOSS AT312-MK3 coaxial sound cabinet from an elevated perspective, revealing top panel and tapered profile
BASSBOSS AT312-MK3 three-way active speaker shown head-on behind its full-height perforated grille

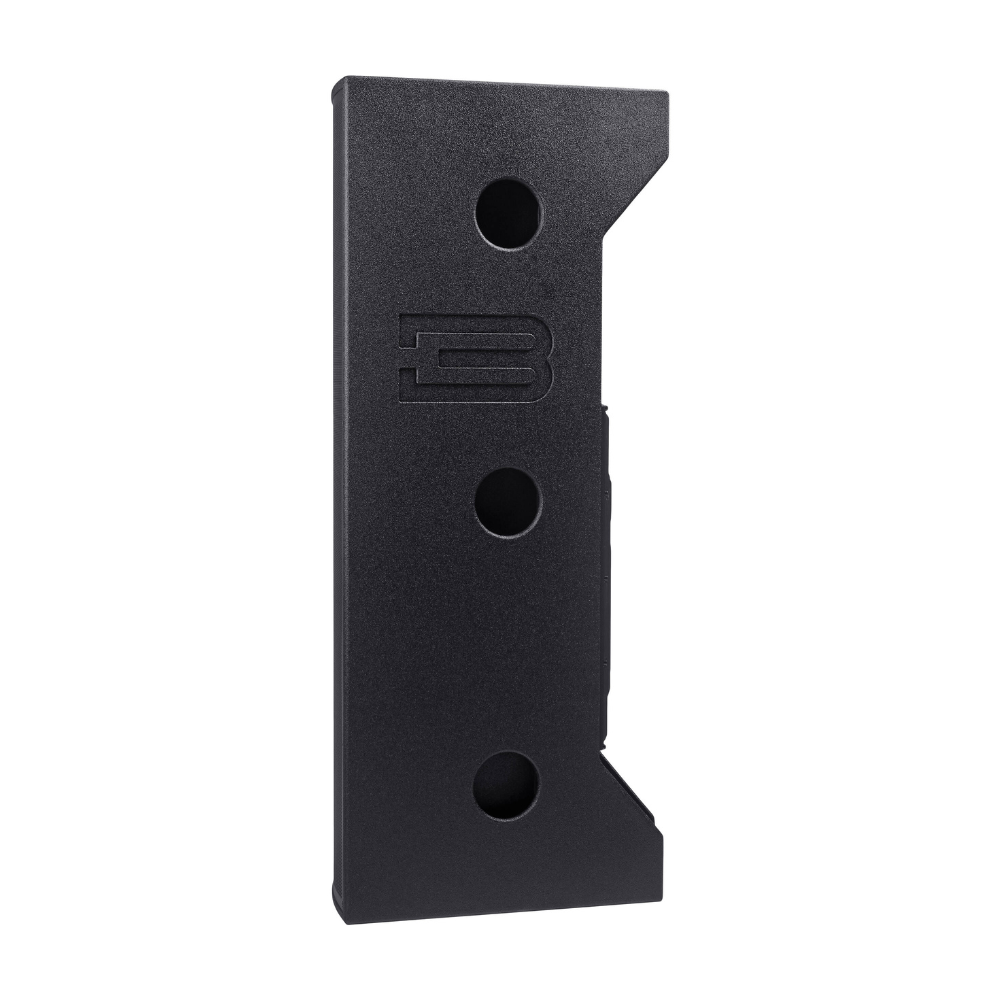

BASSBOSS AT312-MK3 professional audio enclosure in side profile with carry handles and embossed logo
Rear connection plate of the BASSBOSS AT312-MK3 with DSP controls, XLR, powerCON and dual Ethernet ports.
BASSBOSS AT312-MK3 powered point-source loudspeaker at a front three-quarter angle with black steel grille
BASSBOSS AT312-MK3 triple 12-inch PA top angled to highlight its textured black side enclosure
BASSBOSS AT312-MK3 coaxial sound cabinet from an elevated perspective, revealing top panel and tapered profile
BASSBOSS AT312-MK3 three-way active speaker shown head-on behind its full-height perforated grille
BASSBOSS AT312-MK3 professional audio enclosure in side profile with carry handles and embossed logo
Rear connection plate of the BASSBOSS AT312-MK3 with DSP controls, XLR, powerCON and dual Ethernet ports.

BASSBOSS AT312-MK3 Triple 12 Inch Active Point Source Loudspeaker

The BASSBOSS AT312-MK3 delivers the power and frequency coverage of a complete three way system through a true coaxial point source design. Two 12 inch neodymium woofers reproduce the lows, while a 12 inch midrange driver and coaxially mounted 3 inch compression driver project the mids and highs from the same point in space, virtually eliminating phase interference for remarkably focused, coherent sound. With 4000W of dedicated Class D amplification, 133 dB sustained output, 139 dB peak SPL, and consistent 80° × 80° conical coverage, this single cabinet combines reference monitor detail with the impact required for dance floors, touring productions, performance venues, and compact festival stages.



Why Choose the BASSBOSS AT312-MK3?

Dedicated amplification supplies 2400W to the low frequency woofers, 800W to the midrange, and 800W to the compression driver, keeping each section within its optimal operating range. Integrated 96kHz DSP provides filtering, phase alignment, equalization, and driver protection, while ControlBASS enables remote monitoring and preset management.

Symmetrical coverage, integrated rigging, universal voltage compatibility, and a reinforced Baltic birch enclosure make the AT312-MK3 a flexible choice for professionals looking to buy a powerful main loudspeaker that can be deployed vertically or horizontally without requiring a line array footprint.

Key Features

• True three way coaxial point source architecture for focused and coherent sound
• Triple 12 inch configuration with two LF woofers and one coaxial midrange driver
• 4000W Class D tri amplification with dedicated LF, MF, and HF channels
• 133 dB sustained output and 139 dB peak SPL
• Consistent 80° × 80° symmetrical conical coverage
• 60Hz to 19kHz frequency response, depending on the selected preset
• Dual 12 inch neodymium LF woofers with 4 inch voice coils
• 12 inch neodymium midrange driver with 3.5 inch voice coil
• 3 inch diaphragm compression driver with 1.4 inch exit
• 96kHz DSP with 8 onboard presets and storage for up to 100
• ControlBASS remote control, system monitoring, and LAN preset loading
• Touring grade 18mm Baltic birch enclosure with integrated rigging
• Universal 100 to 240V auto sensing power supply
• IP65 rated Neutrik powerCON True 1 TOP power input
• Steel pole socket for deployment on a subwoofer stack

Technical Specifications

Category Specification Details
System Configuration Three Way Triple 12" Self Powered Direct Radiating Coaxial Point Source
Frequency Response 60Hz to 19kHz (±3 dB, Preset Dependent)
Maximum Sustained Output 133 dB SPL at 1m, Half Space
Maximum Peak SPL 139 dB SPL at 1m, Half Space
Dispersion 80° × 80° Conical
Amplification Total Amplification 4000W Class D, 3 Channel
LF Amplifier 2400W
MF Amplifier 800W
HF Amplifier 800W
Processing DSP 96kHz Sampling
Presets 8 Push Button Presets with Storage for Up to 100 Presets
Functions HPF, LPF, Phase Alignment, EQ, and Multi Stage Limiting
Cooling Cooling System Passive Heat Sink and Woofer Airflow with 2 Automatic Blower Fans
Transducers LF Transducers 2 × 12" Neodymium Woofers; 4" Voice Coils; Waterproof Cones
MF Transducer 1 × 12" Neodymium Midrange Driver; 3.5" Voice Coil
HF Transducer 3" Diaphragm Compression Driver; 1.4" Exit; 80° Conical Waveguide
Connectivity Signal Input Balanced XLR F
Signal Output Balanced XLR M Direct Pass Through (Unprocessed)
Network 2 × EtherCON RJ45 with 2 Port Ethernet Switch
DSP Control ControlBASS for macOS and Windows; LAN Preset Loading
Power Power Input Neutrik powerCON True 1 TOP, IP65, 15A/1800W at 120V
Power Output Neutrik powerCON True 1 Female, 10A/1200W
Operating Voltage 100 to 240V AC, 50 to 60Hz, Auto Sensing
Nominal Current Draw 5.4A at 120V / 2.5A at 240V
Construction Cabinet CNC Machined 18mm Baltic Birch Plywood with Dado Joinery and Extensive Bracing
Fly Points 4 × M10 Fly Points
Handles 6 Integrated Handles
Pole Socket 1 × 35mm Steel Pole Socket for Subwoofer Stack Use
Physical Dimensions 48" × 16" × 20" (1219 × 406 × 508mm)
Net Weight 126 LB (57 KG)
Shipping Weight 140 LB (63.5 KG)


Ideal Applications for the BASSBOSS AT312-MK3

Designed for touring sound productions, dance floors, premium nightclub systems, small festival stages, outdoor events, concerts, live performance venues, medium to short throw main PA coverage, high fidelity corporate and AV installations, and vertically or horizontally flown systems.

Purchase Information

Items Included

The package includes one BASSBOSS AT312-MK3 4000W Powered Triple 12 Inch Three Way Coaxial Loudspeaker and one power cable.

Limited Manufacturer Warranty

The manufacturer warranty provides 3 years of coverage for the electronics and transducers and 6 years of coverage for the cabinet.

Product Information

Brand: BASSBOSS
Model: AT312-MK3
UPC: 855591006432
