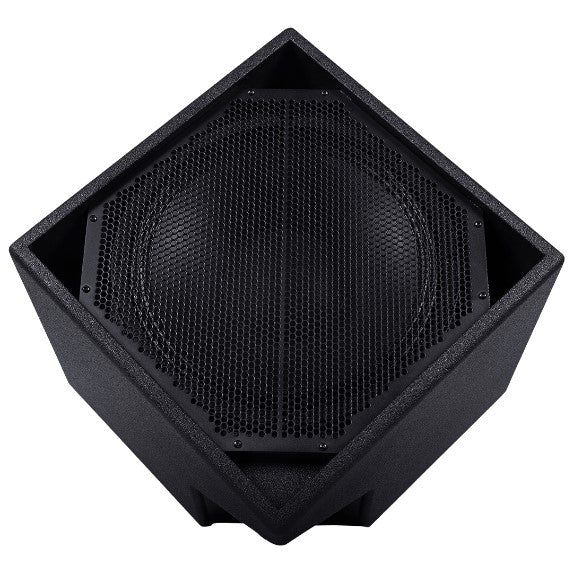

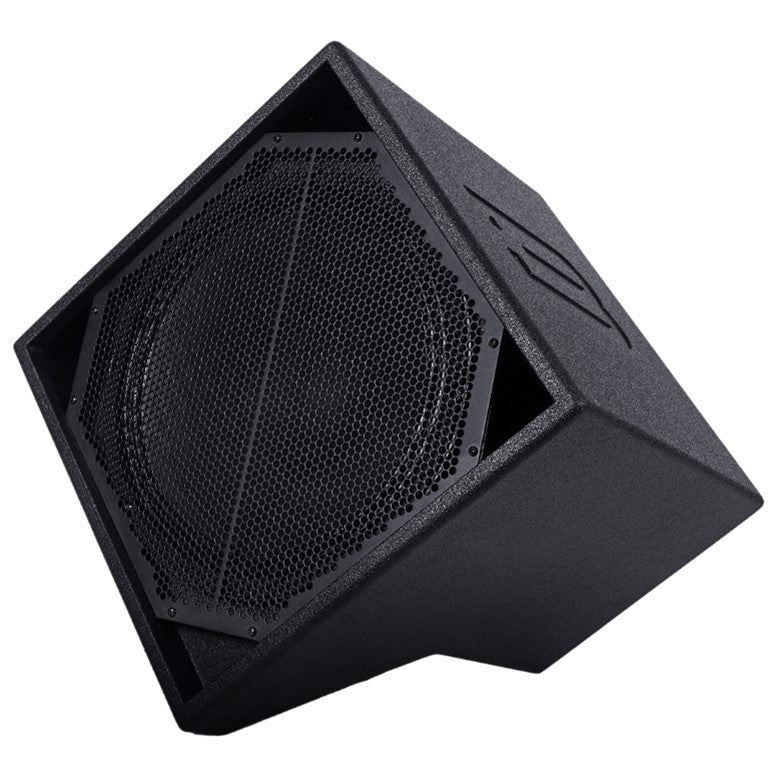

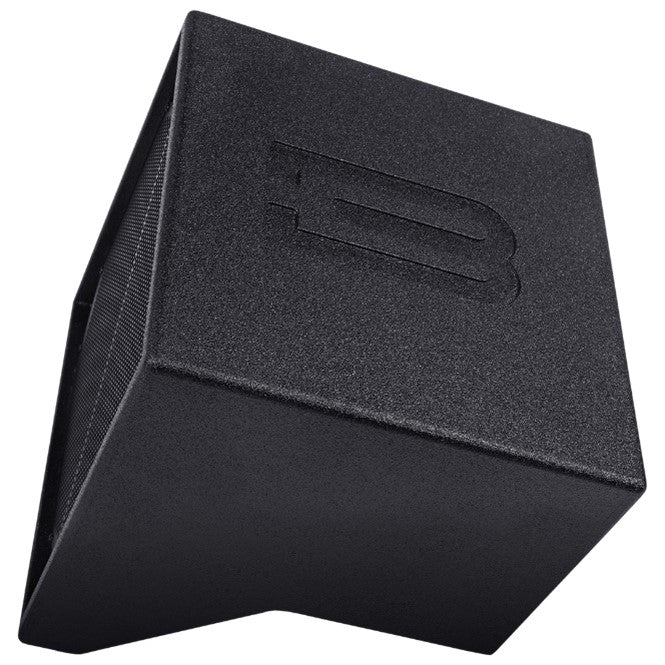

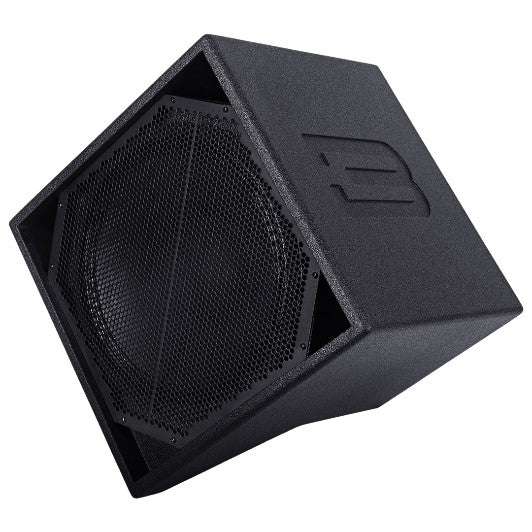

BASSBOSS DiaMon MK3 Active Loudspeaker

The BASSBOSS DiaMon MK3 Active Loudspeaker is a compact yet incredibly powerful active loudspeaker designed for professional sound reinforcement, DJs, touring systems, stage monitoring, and premium AV installations. Featuring a coaxial point-source design, the DiaMon MK3 delivers exceptional vocal clarity, precise coverage, and impressive output in an ultra-portable enclosure.

Engineered with a high-efficiency 12-inch neodymium woofer and integrated 3-inch compression driver, this powered loudspeaker provides clear mids, detailed highs, and outstanding intelligibility while maintaining consistent dispersion across the listening area. Its advanced 1200W Class-D amplifier and 96kHz DSP platform deliver powerful performance, intelligent protection, and seamless integration with other BASSBOSS systems.

The DiaMon MK3 is optimized for professionals who need maximum performance from a compact cabinet. Its lightweight construction, rugged birch plywood enclosure, and versatile monitoring angles make it ideal for portable systems, DJ booths, stage monitoring, and installed audio applications.

Key Features

• Single 12-inch coaxial active loudspeaker
• Integrated 1200W Class-D amplification
• Advanced 96kHz DSP processing with multiple presets
• Coaxial point-source design for consistent sound coverage
• 80° x 80° conical dispersion pattern
• Compact and lightweight professional enclosure

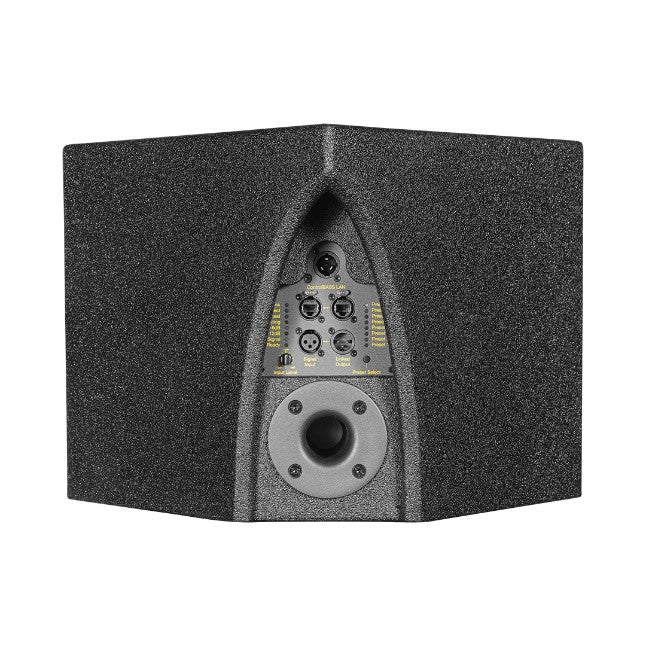

• Waterproof Neutrik powerCON True1 TOP connectors
• Ethernet support with ControlBASS software compatibility
• Touring-grade birch plywood cabinet construction
• Ideal for FOH, stage monitoring, DJs, and AV systems

Technical Specifications

• Configuration: 2-Way Single 12” Powered Loudspeaker
• Frequency Response: 50Hz – 19kHz
• Maximum Sustained Output: 123 dB SPL
• Maximum Peak SPL: 126 dB SPL
• Amplification: 1200W Class-D, 2 Channel
• DSP: 96kHz Integrated DSP with up to 100 presets
• Dispersion: 80° x 80° Conical
• LF Driver: 12” Neodymium Woofer
• HF Driver: 3” Compression Driver
• Cabinet Material: CNC-machined Birch Plywood
• Dimensions: 14" x 14" x 13.5"
• Net Weight: 30 lb (13.5 kg)
• Shipping Weight: 35 lb (16 kg)

Ideal Applications

• Professional DJ systems
• Stage monitoring
• Concert and live sound reinforcement
• Portable touring rigs
• Nightclubs and lounges
• Corporate AV systems
• Houses of worship
• Compact high-output installations

Why Choose the DiaMon MK3?

The DiaMon MK3 is built for audio professionals who demand portability without sacrificing performance. Its coaxial design provides accurate phase response and uniform sound dispersion, while the powerful integrated amplification delivers impressive output from a remarkably compact cabinet.

Professional users frequently praise BASSBOSS systems for their clarity, output capability, reliability, and strong low-frequency integration in demanding live sound environments.
