BASSBOSS DiaMon-RP-EC Passive Loudspeaker

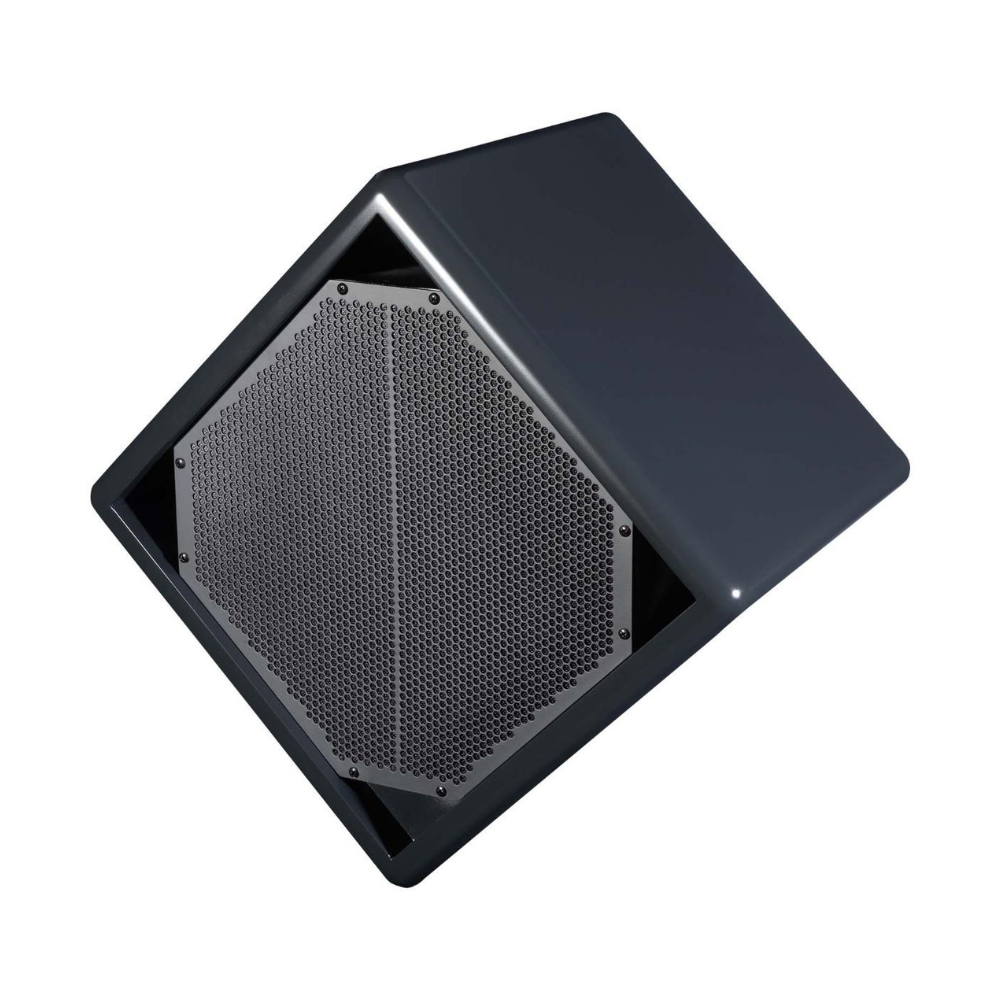

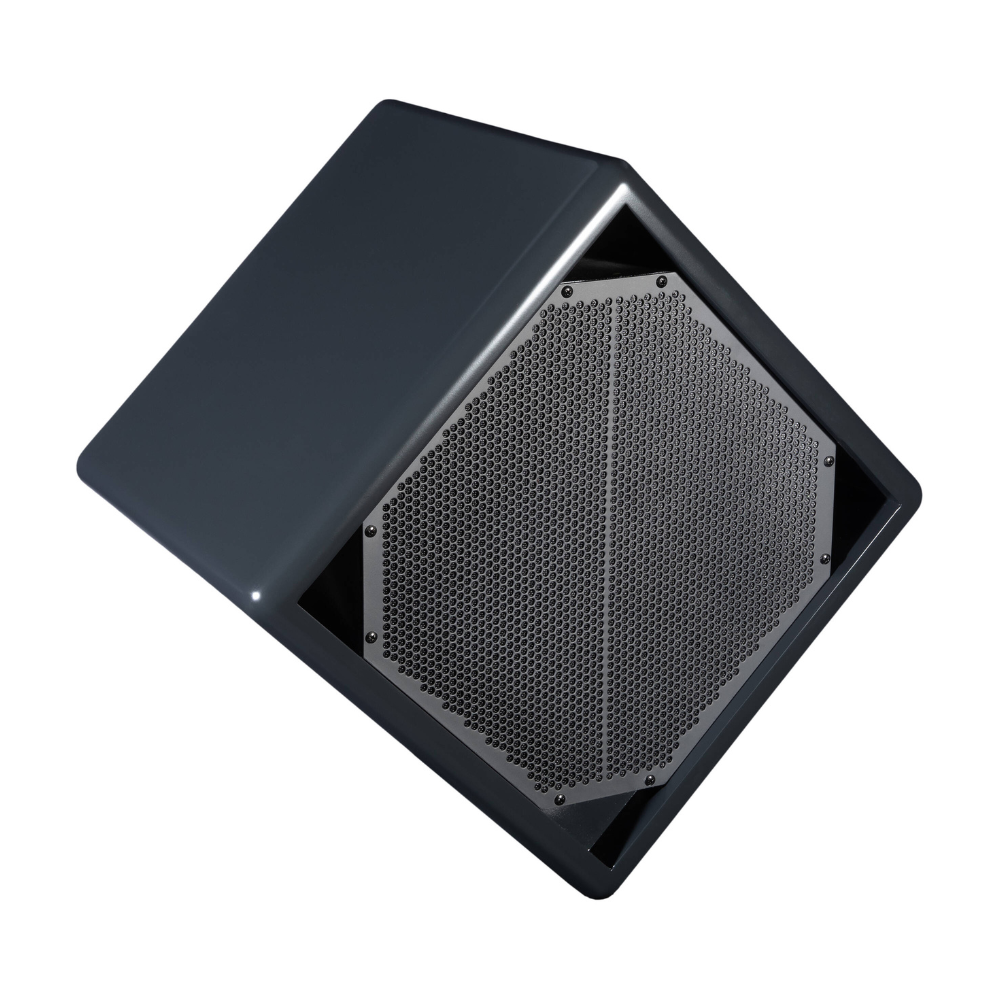

BASSBOSS DiaMon-RP-EC Compact Remote Powered Coaxial Loudspeaker

The BASSBOSS DiaMon-RP-EC delivers high output point source performance from an exceptionally compact enclosure designed for visually discreet professional installations. Its true coaxial architecture places a 3 inch diaphragm compression driver concentrically within a 12 inch neodymium woofer, producing coherent 80° conical coverage with consistent off axis response. With 1200W of passive bi amplified power handling, response from 80Hz to 18kHz, 123 dB sustained output, and 126 dB peak SPL, this enamel charcoal loudspeaker provides clear, articulate sound as a main, monitor, satellite, or distributed fill.

Why Choose the BASSBOSS DiaMon-RP-EC?

The coaxial driver configuration aligns the low and high frequency sources at a single point, supporting clear imaging and consistent coverage while eliminating the additional cabinet space required for a separate high frequency horn. Its sealed enclosure and compact dimensions allow powerful professional sound to integrate into spaces where larger loudspeakers would be visually or physically intrusive.

A sealed birch plywood cabinet, protective steel grille, integrated pole socket, and sophisticated charcoal finish support flexible placement in premium architectural environments. The DiaMon-RP-EC is an excellent choice for professionals looking to buy a compact point source loudspeaker that balances output, consistency, placement flexibility, and visual discretion. A BASSBOSS programmed amplifier with Signature DSP is required and sold separately.

Key Features

• Compact two way passive bi amplified coaxial point source architecture
• Enamel charcoal finish for discreet architectural integration
• True coaxial design for phase coherent output and clear imaging
• 123 dB sustained output and 126 dB peak SPL
• 80Hz to 18kHz frequency response
• Consistent 80° conical coverage and off axis response
• 12 inch neodymium woofer with 3 inch voice coil
• 3 inch diaphragm compression driver with 1.4 inch throat
• 1200W total bi amplified power handling
• 900W LF and 300W HF power allocation
• Requires a BASSBOSS programmed amplifier with Signature DSP
• Dual speakON NL4 input and thru connections

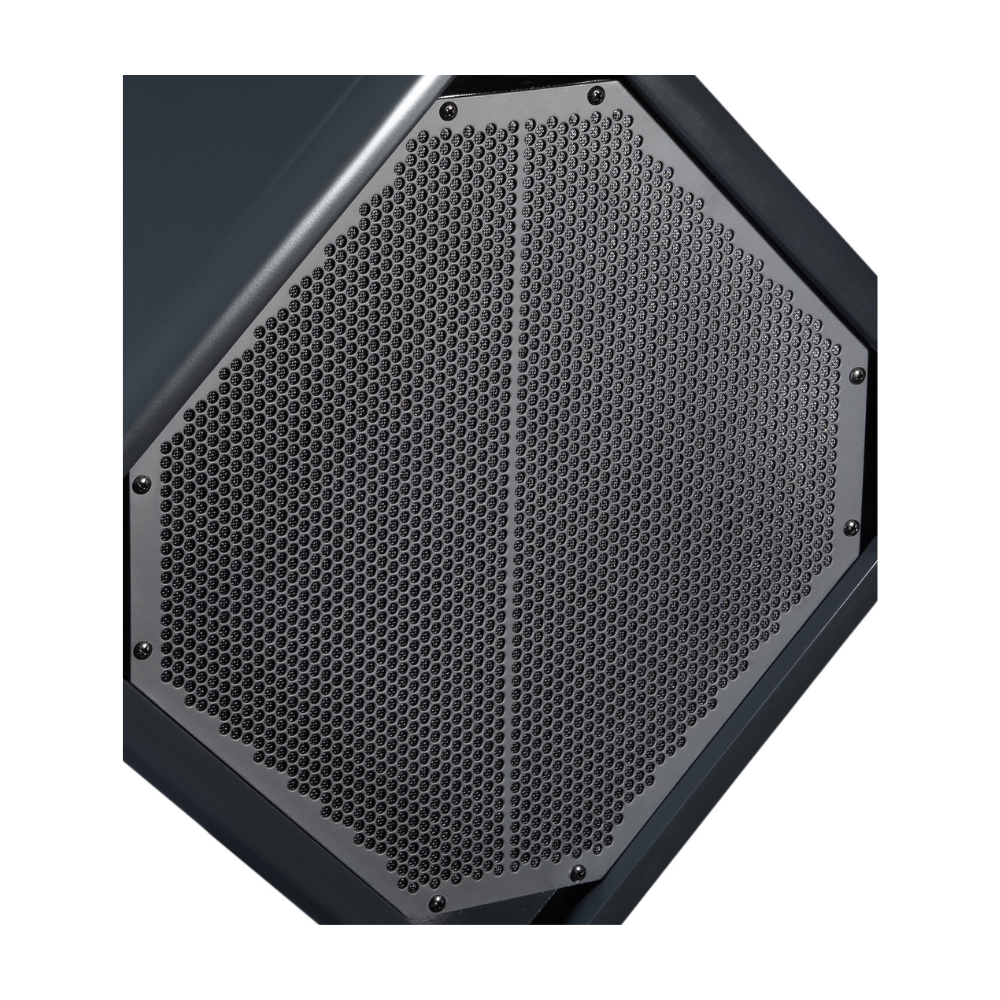

• Sealed birch plywood enclosure with protective steel grille
• Integrated 35mm steel pole socket
• Intended for indoor, non weatherized installations

Technical Specifications

Ideal Applications for the BASSBOSS DiaMon-RP-EC

Designed for premium bars, nightclubs, restaurants, lounges, hospitality venues, retail and architectural audio installations, houses of worship, studios, fitness facilities, distributed mains, satellite systems, fills, and compact stage or DJ monitoring.

Purchase Information

Items Included

The package includes one BASSBOSS DiaMon-RP-EC Passive 12 Inch Coaxial Loudspeaker in Enamel Charcoal.
The required BASSBOSS programmed amplifier with Signature DSP is sold separately.

Limited Manufacturer Warranty

The limited manufacturer warranty provides 2 years of coverage for the transducer and 6 years of coverage for the cabinet.

Product Information

Brand: BASSBOSS
Model: DIAMON-RP-EC
UPC: 855591006517
