BASSBOSS DiaMon-RP-EG Passive Loudspeaker

BASSBOSS DiaMon-RP-EG Compact Remote Powered Point Source Loudspeaker

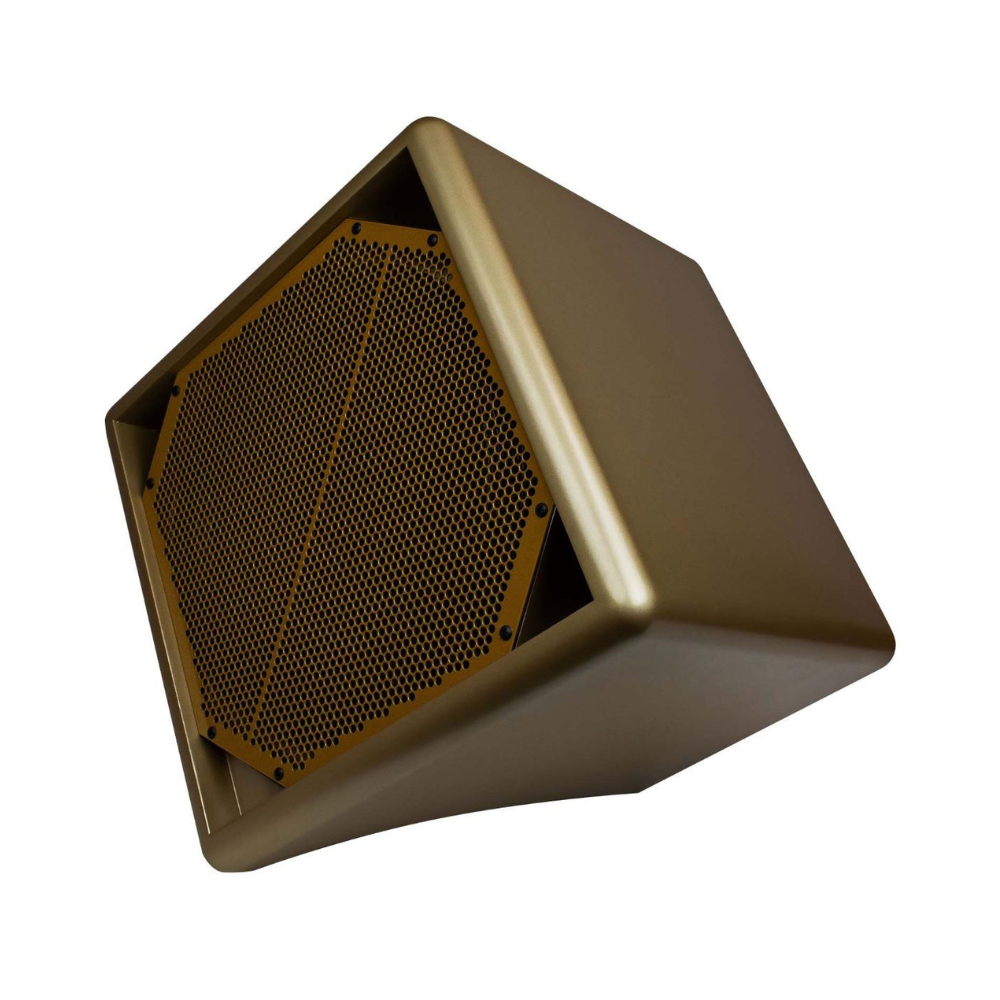

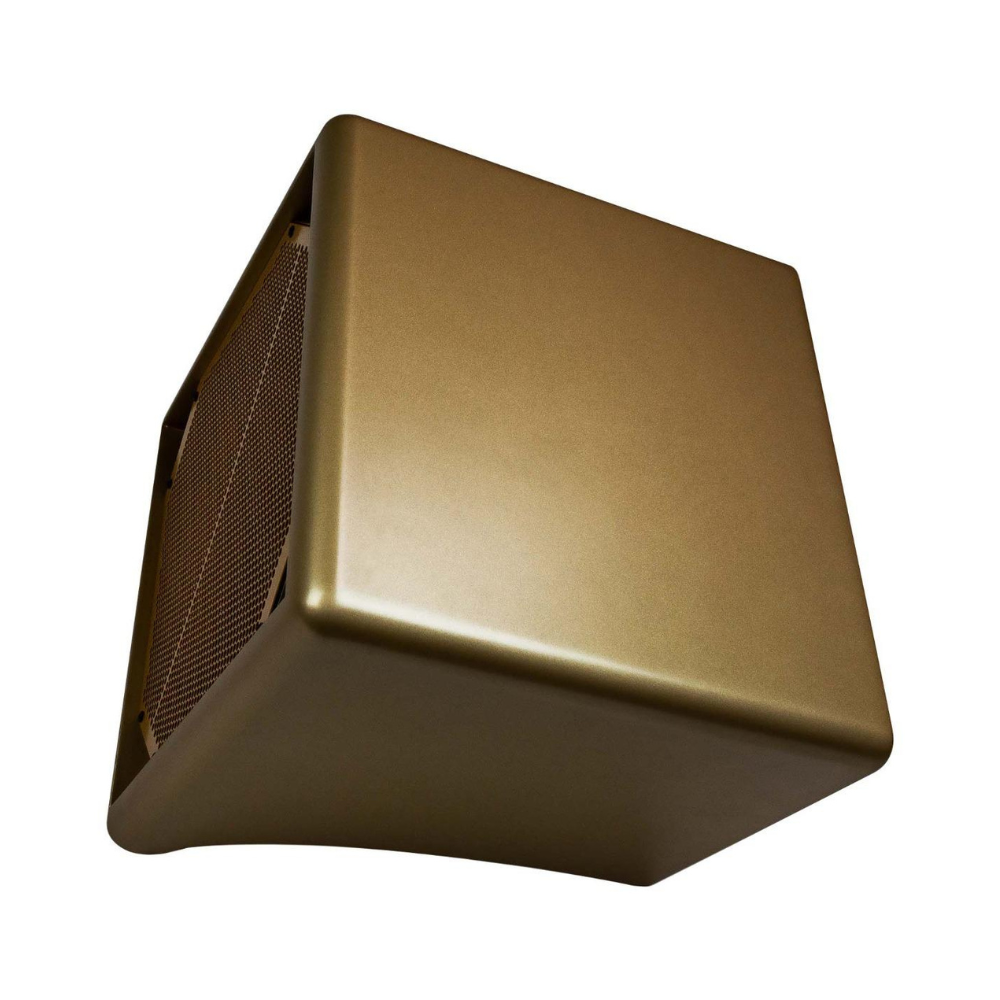

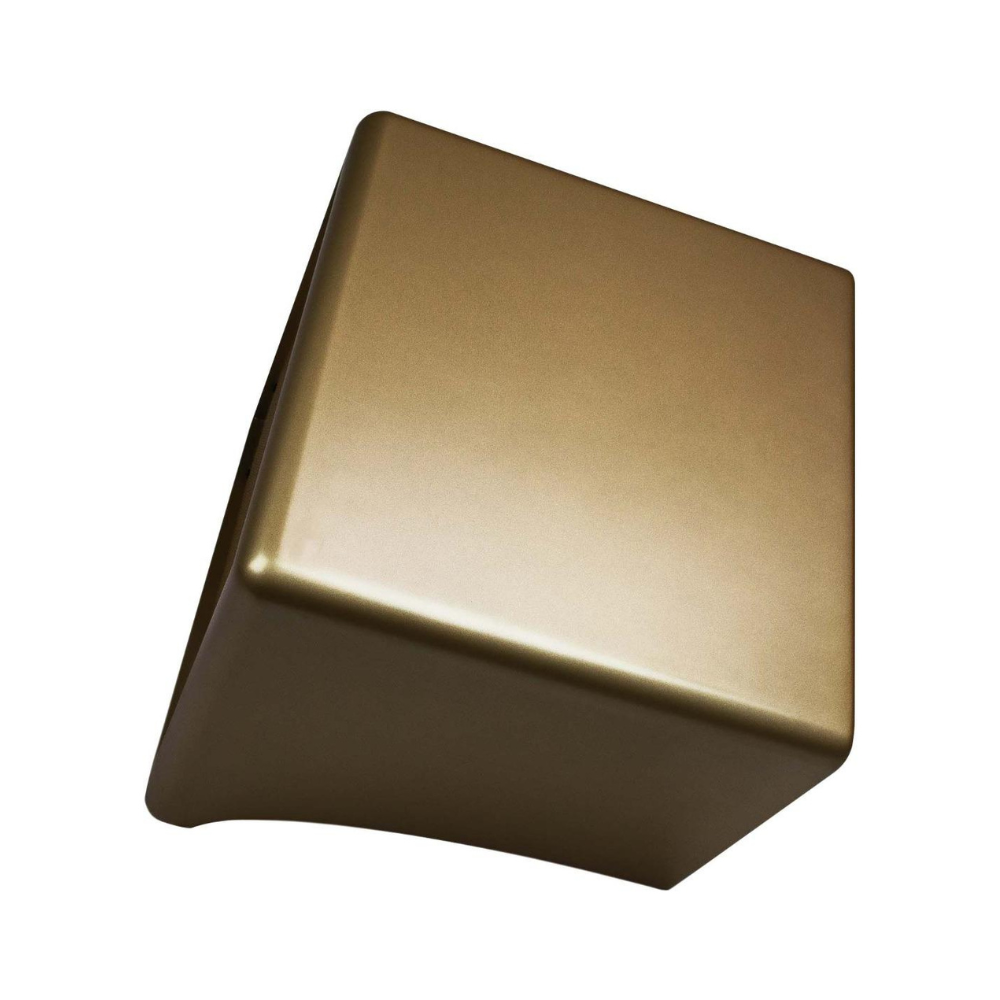

The BASSBOSS DiaMon-RP-EG combines substantial professional output with a distinctive enamel gold finish for venues where sound quality and visual presentation carry equal importance. Its true coaxial design places a 3 inch compression driver through the center of a 12 inch neodymium woofer, creating phase coherent 80° conical coverage from an exceptionally compact sealed enclosure. With 1200W of passive bi amplified power handling, response from 80Hz to 18kHz, 123 dB continuous output, and 126 dB peak SPL, it delivers clear, articulate sound for premium installations, distributed systems, monitoring, and compact mains paired with BASSBOSS subwoofers.

Why Choose the BASSBOSS DiaMon-RP-EG?

The coaxial architecture aligns the low and high frequency sources at a single point, maintaining consistent response across the coverage pattern while minimizing the space normally required for a separate high frequency horn. The result is a compact loudspeaker with clear imaging, broad placement flexibility, and output that exceeds expectations for its physical size.

Its sealed birch plywood enclosure, protective steel grille, pole mounting capability, and enamel gold finish support discreet integration into visually refined spaces. The DiaMon-RP-EG is an excellent choice for professionals looking to buy a premium point source loudspeaker that combines architectural appeal with high performance sound. A compatible BASSBOSS preprogrammed amplifier with Signature DSP is required and sold separately.

Key Features

• Compact passive bi amplified two way coaxial point source architecture
• Distinctive enamel gold finish for visually refined installations
• 1200W total passive power handling
• 123 dB continuous output and 126 dB peak SPL
• 80Hz to 18kHz frequency response
• Consistent 80° conical coverage
• 12 inch neodymium woofer with 3 inch voice coil
• 3 inch diaphragm compression driver with 1.4 inch exit
• 8 Ohm nominal impedance
• Requires a compatible BASSBOSS preprogrammed amplifier with Signature DSP

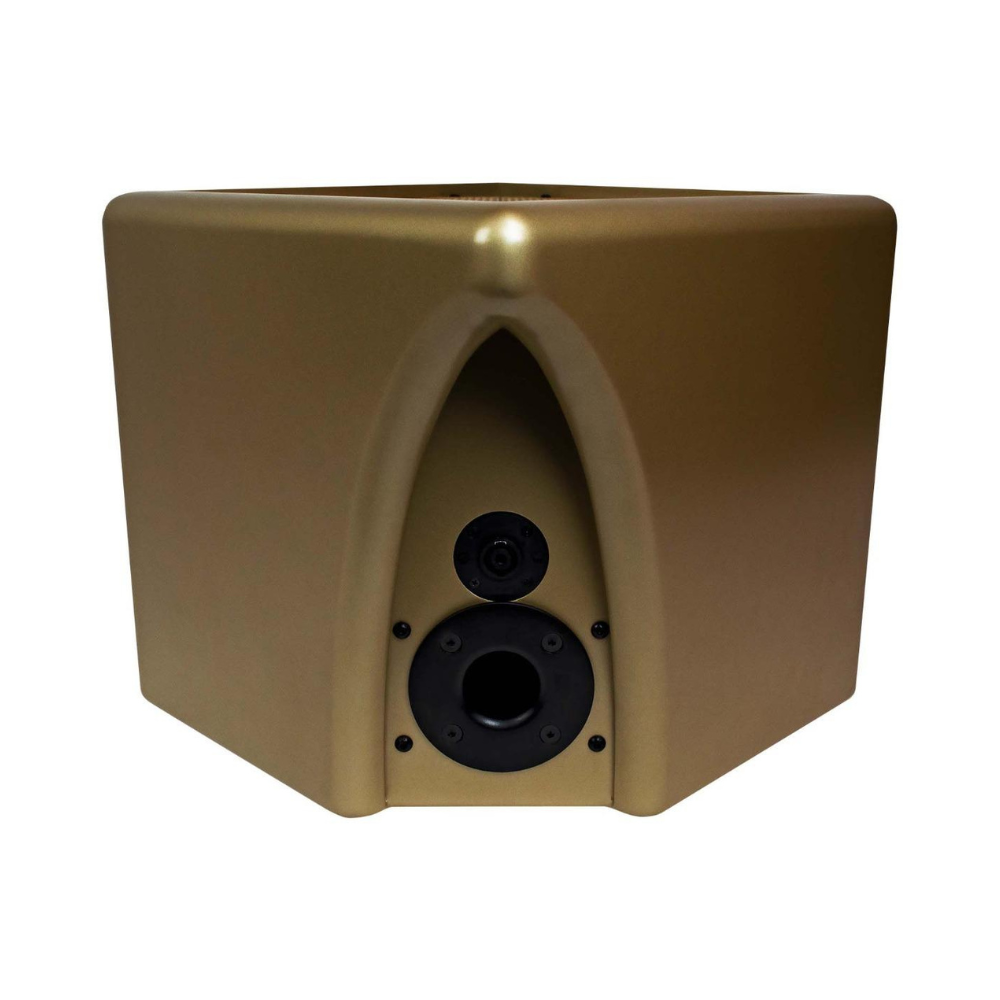

• Dual speakON NL4 input and thru connections

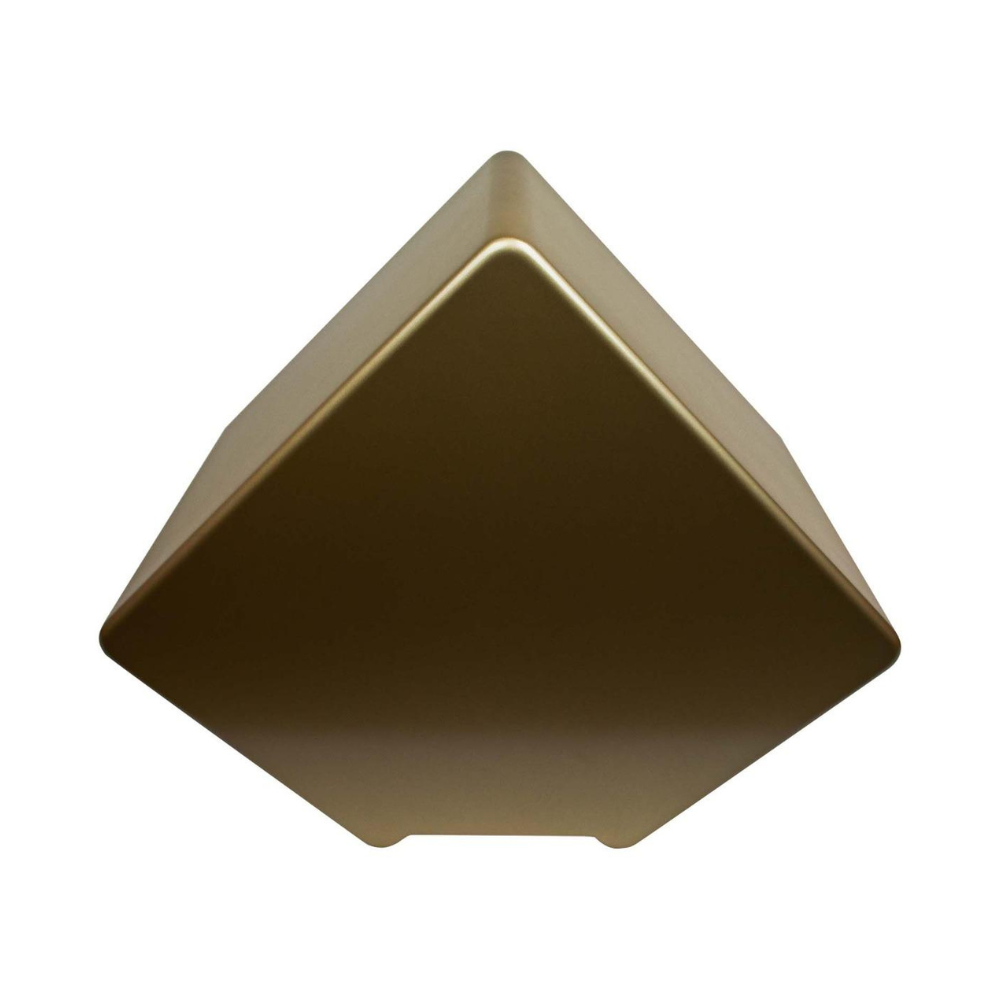

• Compact sealed birch plywood enclosure

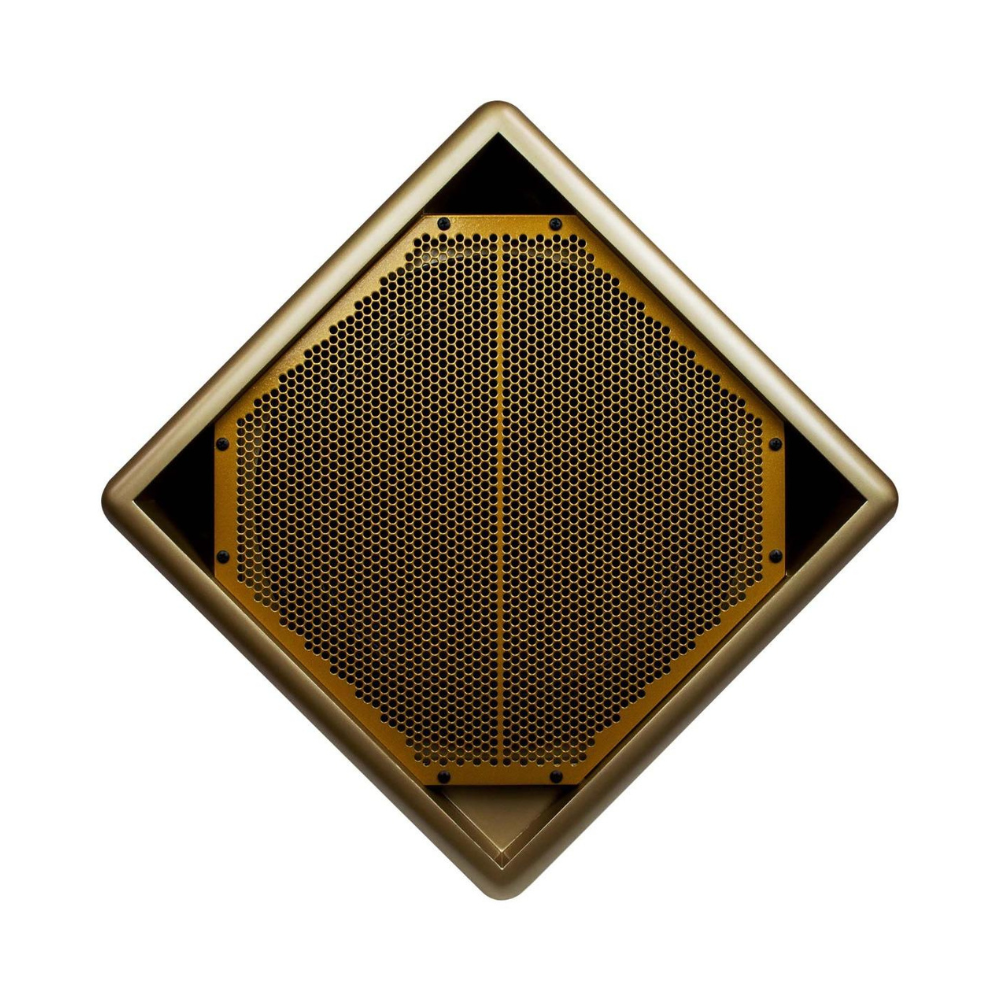

• Protective steel grille and integrated 35mm pole socket

Technical Specifications

Ideal Applications for the BASSBOSS DiaMon-RP-EG

Designed for nightclubs, lounges, bars, restaurants, premium hospitality venues, retail and fitness installations, houses of worship, multipurpose spaces, studios, compact production rooms, main loudspeaker systems paired with BASSBOSS subwoofers, stage monitoring, satellite systems, delays, and distributed fills.

Purchase Information

Items Included

The package includes one BASSBOSS DiaMon-RP-EG Passive 12 Inch 2 Way Coaxial Loudspeaker in Enamel Gold.
The required BASSBOSS preprogrammed amplifier with Signature DSP is sold separately.

Limited Manufacturer Warranty

The limited manufacturer warranty provides 2 years of coverage for the transducer and 6 years of coverage for the cabinet.

Product Information

Brand: BASSBOSS
Model: DIAMON-RP-EG
UPC: 855591006524
