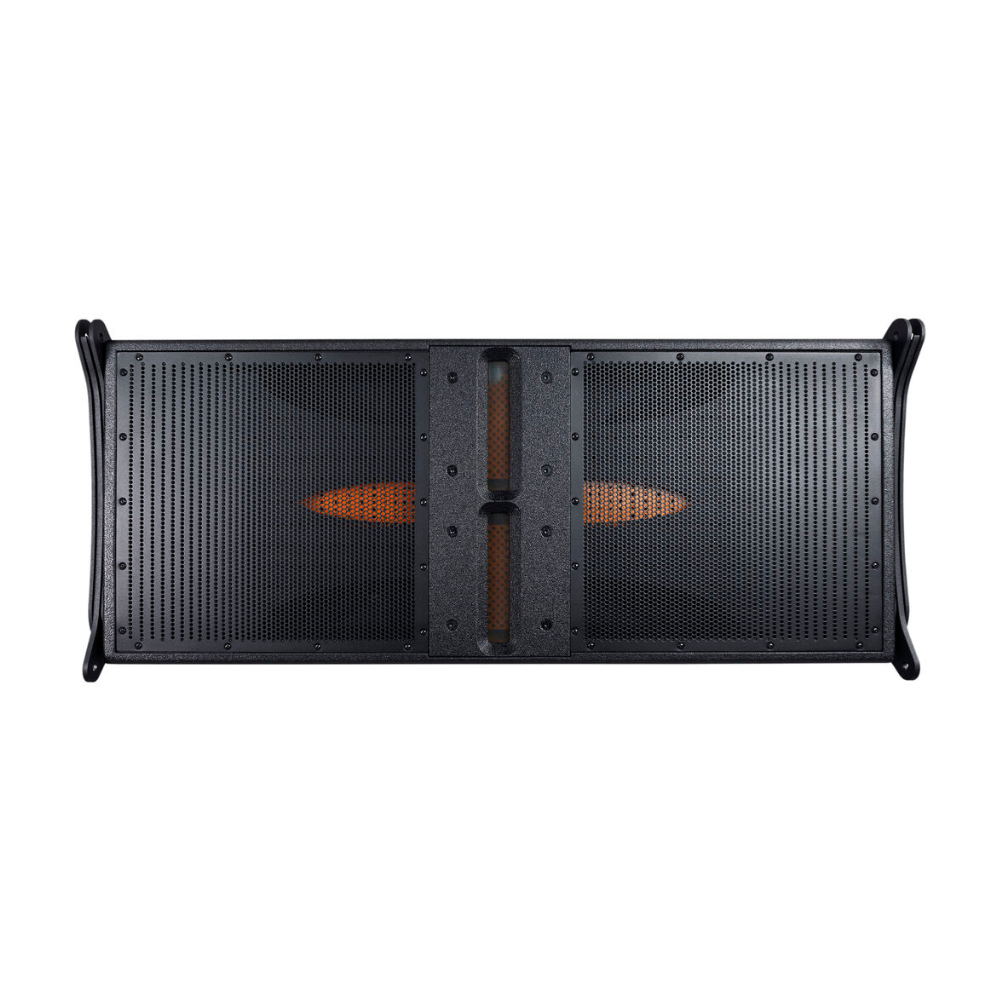

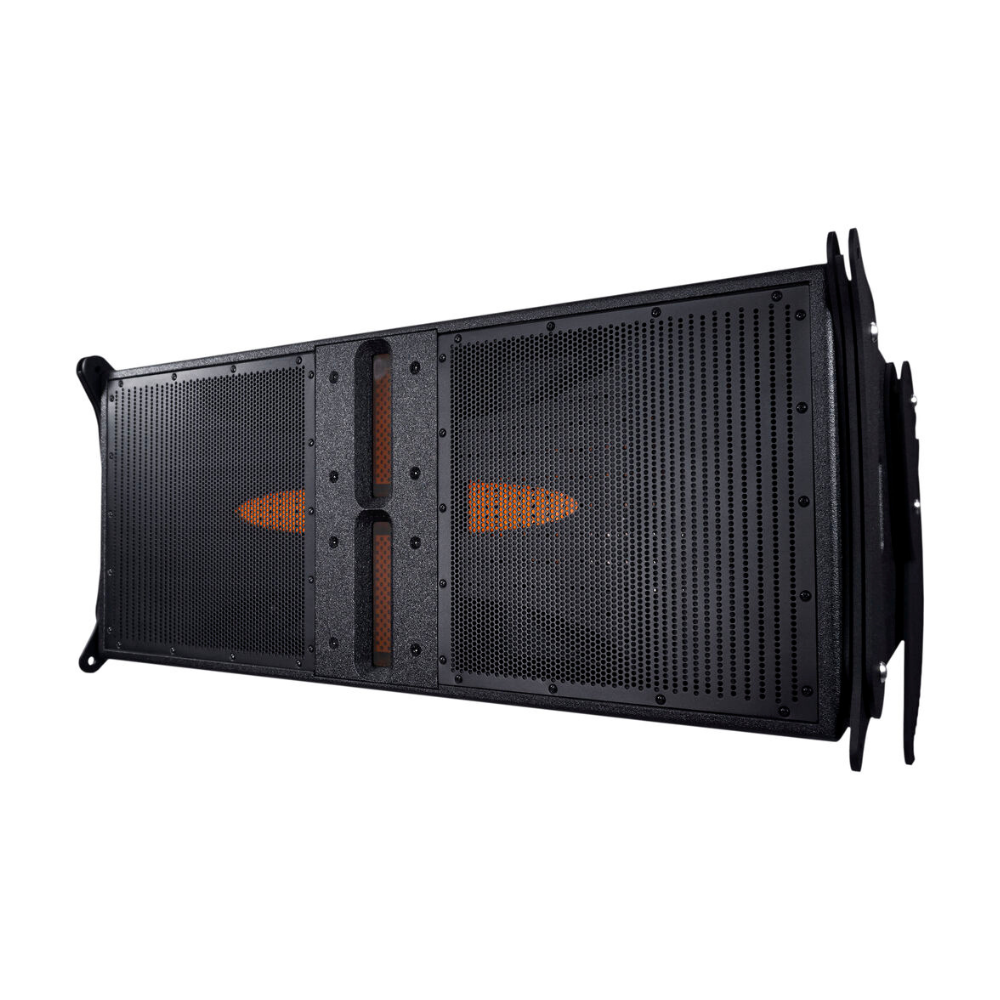

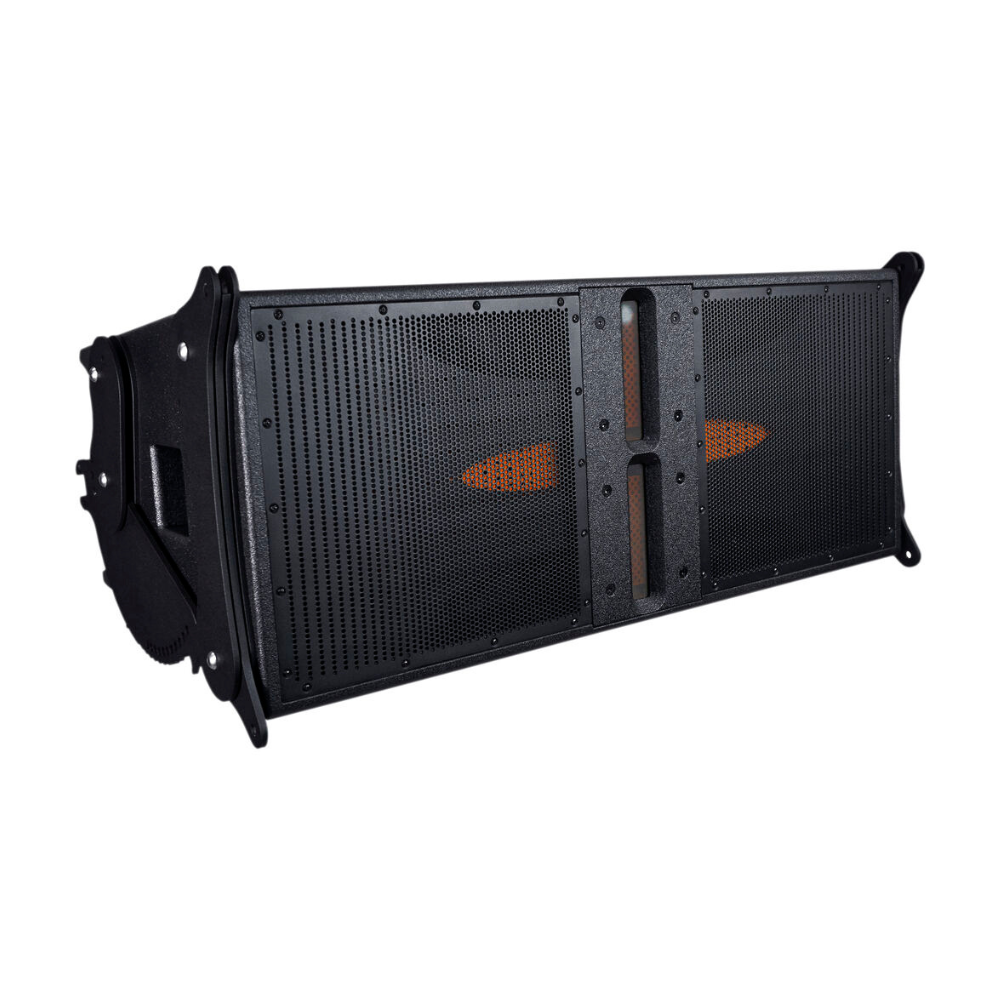

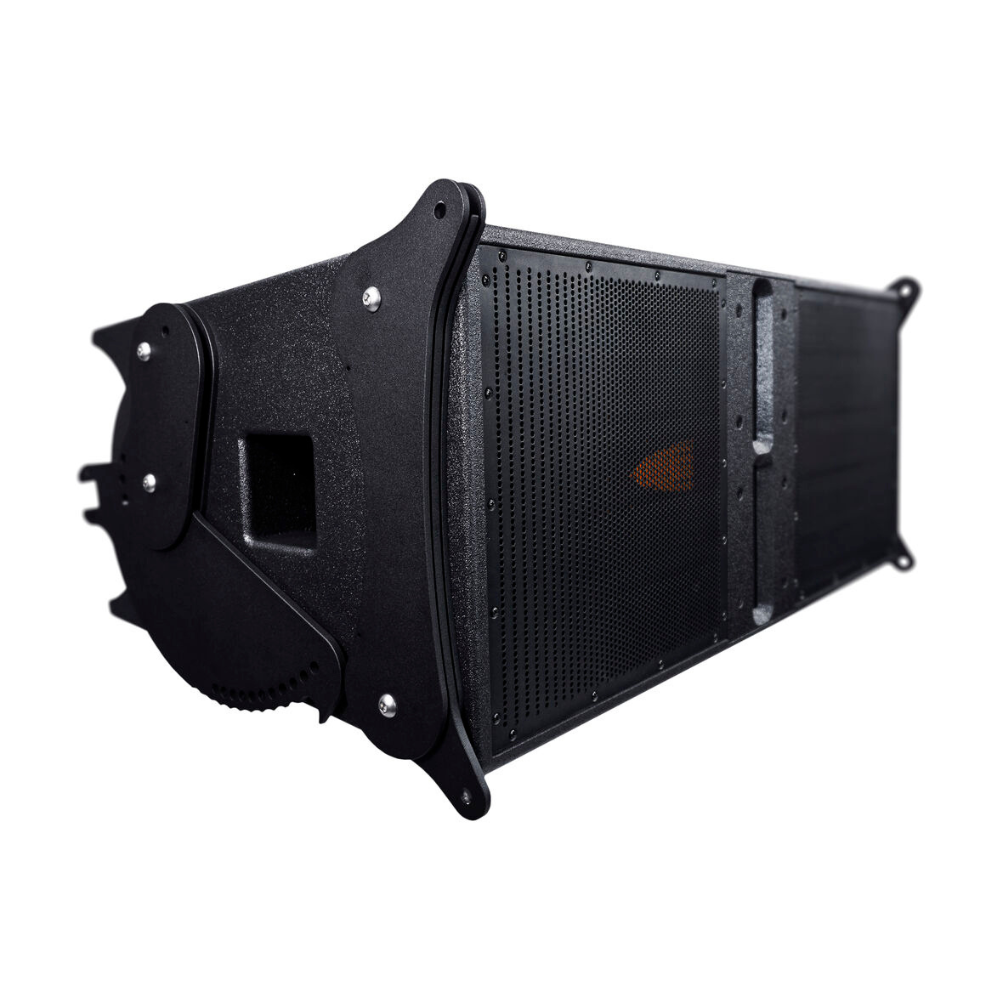

BASSBOSS MFLA-MK3 Powered Dual 12 Inch Line Array Speaker
The BASSBOSS MFLA-MK3 Powered Line Array Speaker combines horizontally symmetrical dual 12 inch architecture, Pressure Phase Distributed midrange loading, and dual isophasic high frequency waveguides to deliver wide, phase coherent coverage across scalable professional arrays. Its 3200W Class D bi amplified system produces 136 dB sustained output and 142 dB peak SPL across a 60Hz to 18kHz frequency range. With 120° horizontal dispersion, array dependent vertical control, and integrated precision flyware, this compact line array element provides the output and deployment flexibility required for festivals, touring productions, concert venues, amphitheaters, and permanent high output installations.
Why Choose the BASSBOSS MFLA-MK3 Powered Line Array Speaker?
Two 12 inch neodymium woofers use Pressure Phase Distributed loading to maintain consistent midrange coverage, while two 3 inch compression drivers and isophasic waveguides produce a phase coherent high frequency wavefront across the horizontal pattern. Dedicated amplification supplies 2400W to the low frequency section and 800W to the high frequency section, preserving clean transient response and substantial output from each cabinet.
Integrated fixed hinge flyware supports splay adjustments from 0° to 10° in precise 1° increments for scalable flown or ground stacked arrays. Integrated 96kHz DSP, ControlBASS networking, dual Ethernet ports, LAN preset loading, universal voltage compatibility, and IP65 rated power connections make the MFLA-MK3 a compelling choice for professionals looking to buy a powerful and precisely deployable line array system.
Key Features
• Horizontally symmetrical dual 12 inch powered line array architecture
• Pressure Phase Distributed midrange loading for consistent phase coherent coverage
• Dual compression drivers with isophasic high frequency waveguides
• 136 dB sustained output and 142 dB peak SPL
• 60Hz to 18kHz frequency response
• Wide 120° horizontal and array dependent vertical dispersion
• Two 12 inch neodymium woofers with 3.5 inch voice coils and waterproof cones
• Two 3 inch compression drivers with 1.4 inch exits
• 3200W Class D bi amplification with dedicated 2400W LF and 800W HF channels
• 96kHz DSP with 8 onboard presets
• Storage for up to 100 presets through ControlBASS
• Dual Ethernet ports for network control and LAN preset loading

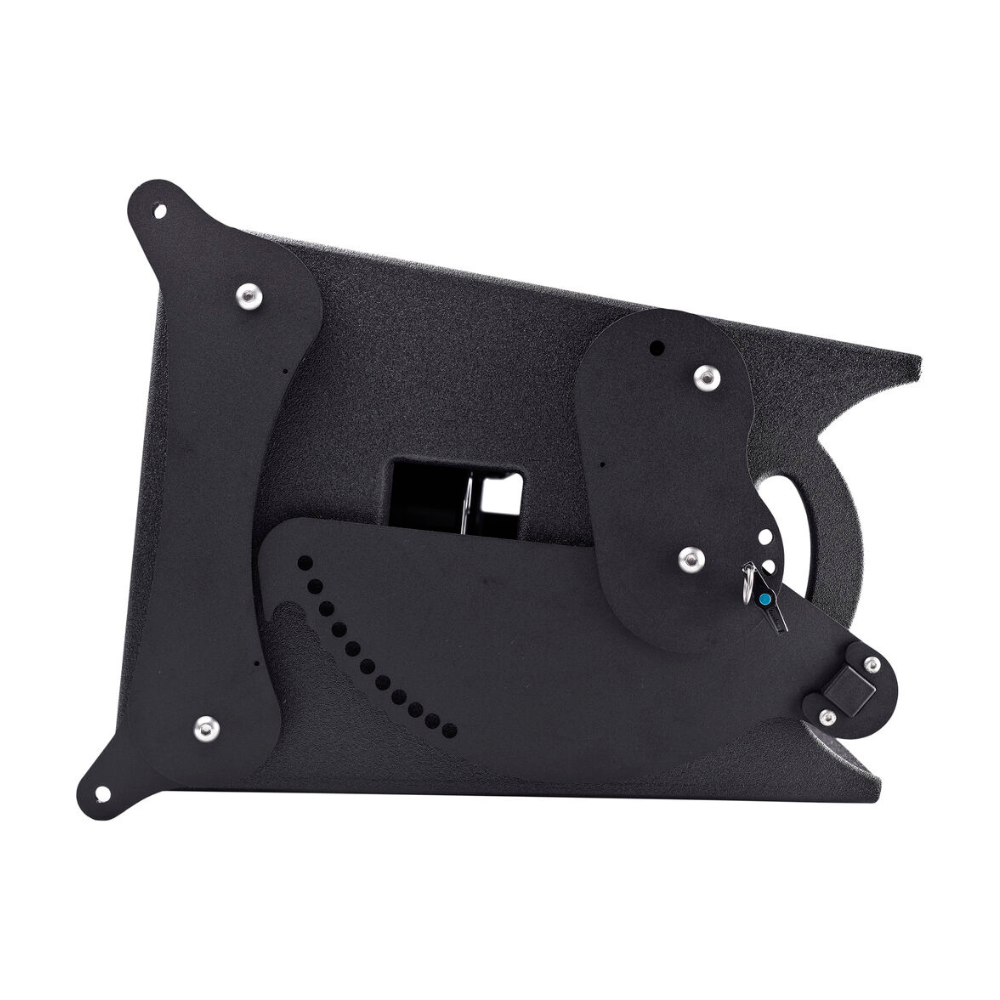

• Integrated fixed hinge flyware with 0° to 10° splay adjustment
• Universal 100 to 240V auto sensing power supply
• IP65 rated Neutrik powerCON True1 TOP power connection
• Touring grade 15mm Baltic birch enclosure with extensive bracing
• Rugged waterproof textured polyurea finish
Technical Specifications
| Category | Specification | Details |
|---|---|---|
| System | Configuration | Horizontally Symmetrical 2 Way Dual 12" Powered Vented Direct Radiating Line Array Element |
| Frequency Response | 60Hz to 18kHz (±3 dB) | |
| Maximum Sustained Output | 136 dB SPL at 1m, Half Space | |
| Maximum Peak SPL | 142 dB SPL at 1m, Half Space | |
| Dispersion | 120° Horizontal × Array Dependent Vertical | |
| Acoustic Loading | Pressure Phase Distributed Midrange Loading | |
| Amplification | Total Amplification | 3200W Class D, 2 Channel |
| LF Amplifier | 2400W | |
| HF Amplifier | 800W | |
| Processing | DSP | 96kHz Sampling |
| Presets | 8 Push Button Presets with Storage for Up to 100 Presets | |
| Transducers | LF Transducers | 2 × 12" Neodymium Woofers with 3.5" Voice Coils and Waterproof Cones |
| HF Transducers | 2 × 3" Compression Drivers with 1.4" Exits and Isophasic Waveguides | |
| Connectivity | Signal Input | Balanced XLR F |
| Signal Output | Balanced XLR M Direct Pass Through | |
| Network | 2 × EtherCON RJ45 for ControlBASS and LAN Preset Loading | |
| DSP Control | ControlBASS for macOS and Windows | |
| Power | Power Input | Neutrik powerCON True1 TOP, IP65, 15A/1800W at 120V |
| Power Connection | Neutrik powerCON True1 TOP In and Through | |
| Operating Voltage | 100 to 240V AC, 50 to 60Hz, Auto Sensing | |
| Nominal Current Draw | 4.6A at 120V / 2.3A at 240V | |
| Construction | Cabinet | CNC Machined 15mm Baltic Birch Plywood with Extensive Bracing |
| Finish | High Pressure Bonded, Rugged Waterproof Textured Polyurea | |
| Rigging | Flyware | Integrated External Fixed Hinge Flyware |
| Splay Adjustment | 0° to 10° in 1° Increments | |
| Linking | Integrated Fixed Hinge Linking Mechanism | |
| Physical | Dimensions | 16.125" × 40.5" × 20.375" (410 × 1029 × 518mm, Including Flyware) |
| Net Weight | 104 LB (47 KG) | |
| Shipping Weight | 135 LB (61.5 KG) |
Ideal Applications for the BASSBOSS MFLA-MK3 Powered Line Array Speaker
Designed for medium to large festival main stages, touring line array sound systems, large concert venues, live productions, permanent nightclub installations, outdoor amphitheaters, event stages, large scale corporate and AV events, and installations requiring long throw performance with wide horizontal coverage.
Purchase Information
Items Included
The package includes one BASSBOSS MFLA-MK3 Dual 12 Inch Powered Line Array Loudspeaker Module and one power cord.
Limited Manufacturer Warranty
The limited manufacturer warranty provides 3 years of coverage for the electronics, transducers, and drivers and 6 years of coverage for the cabinet.
Product Information
Brand: BASSBOSS
Model: MFLA-MK3
UPC: 855591006661
