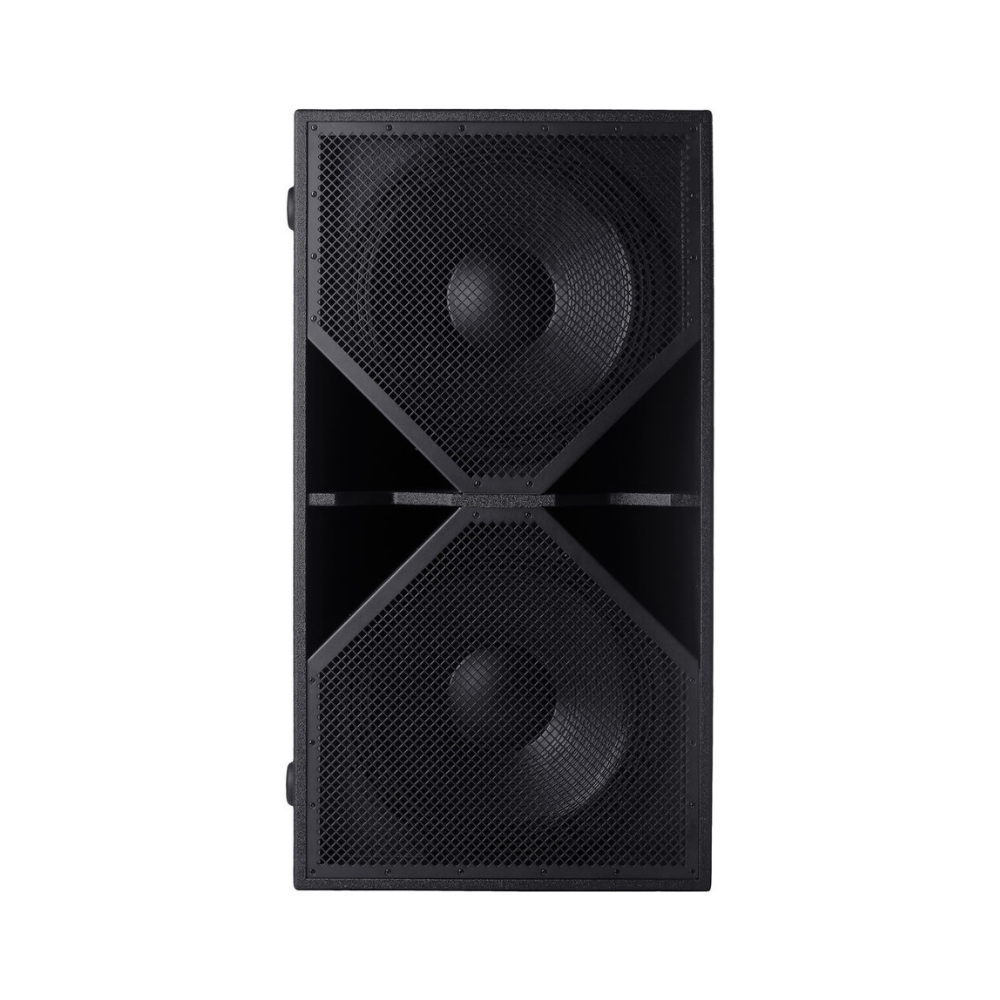

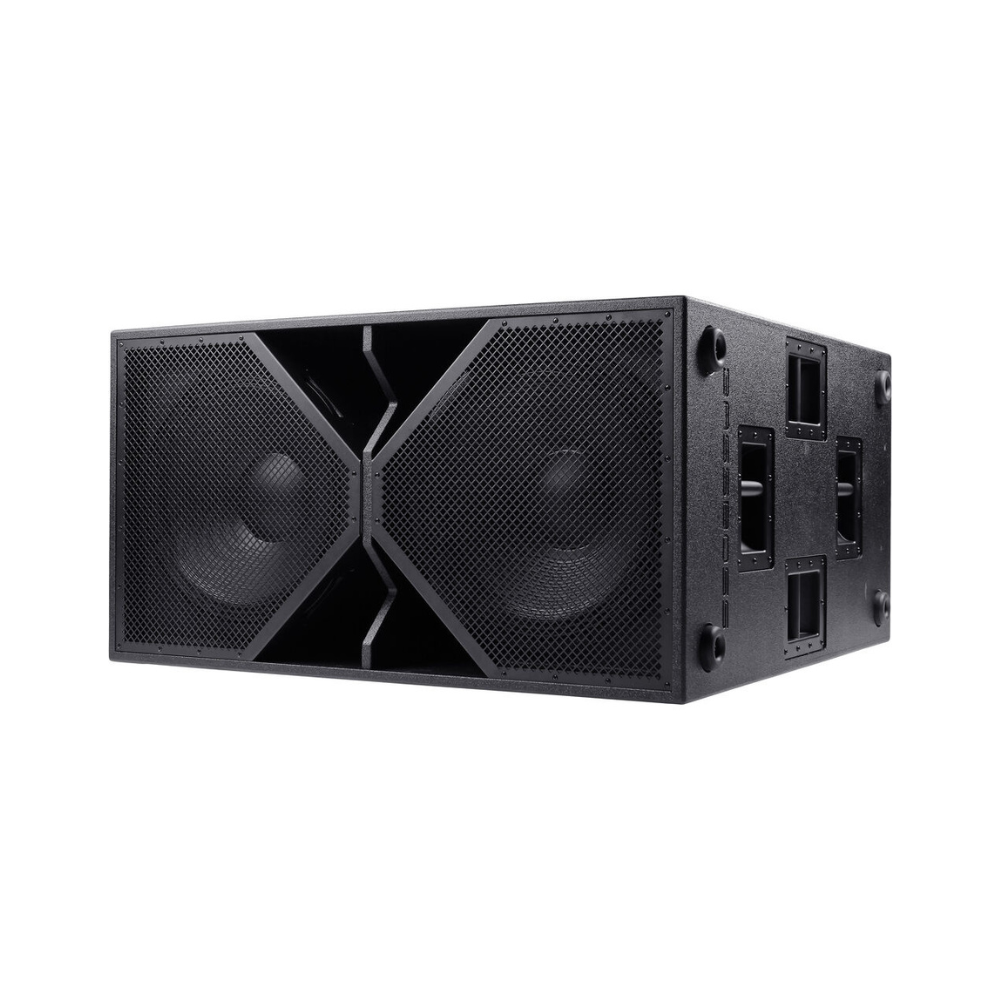

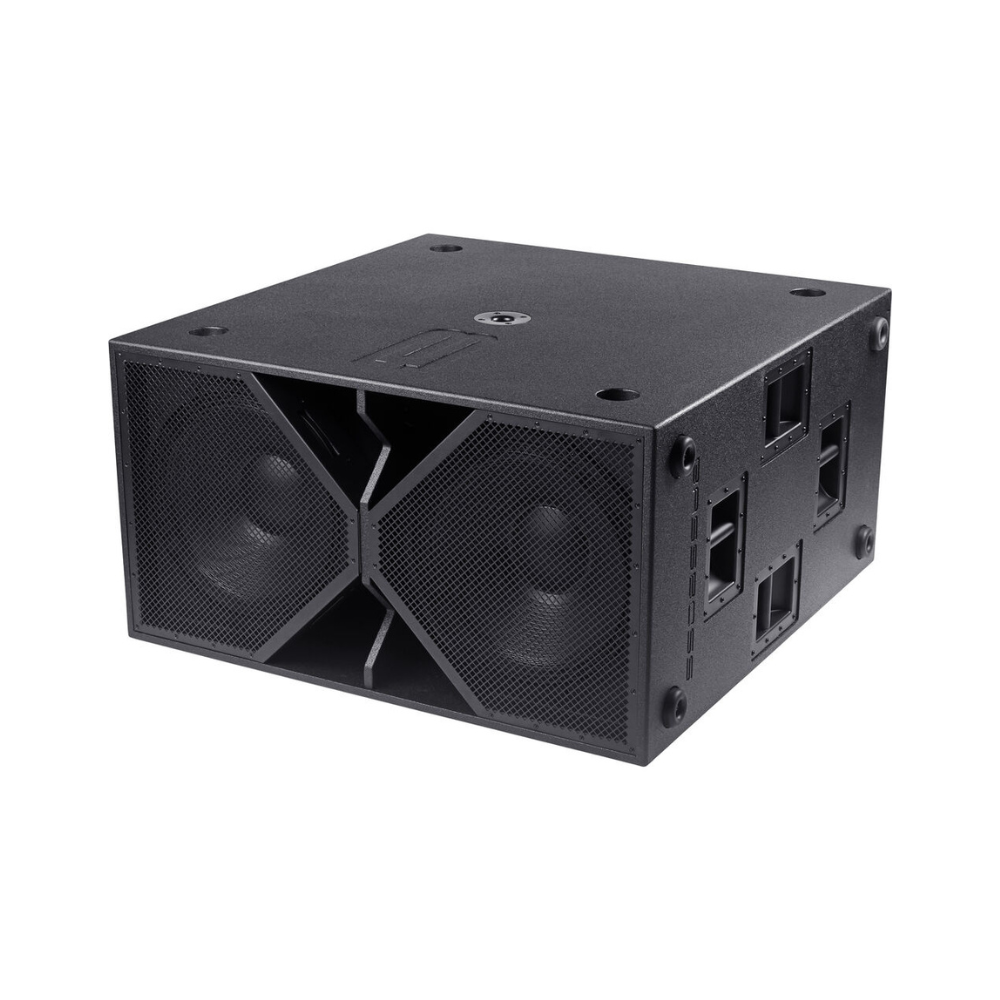

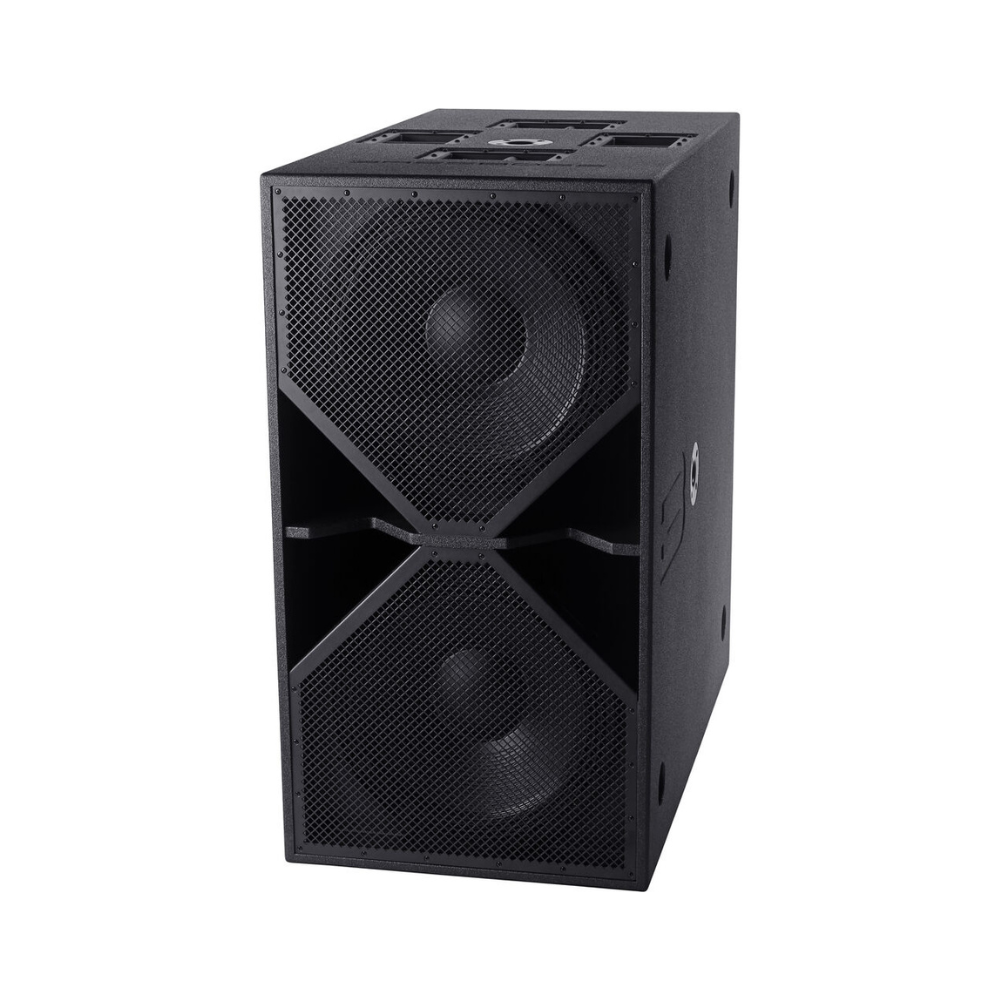

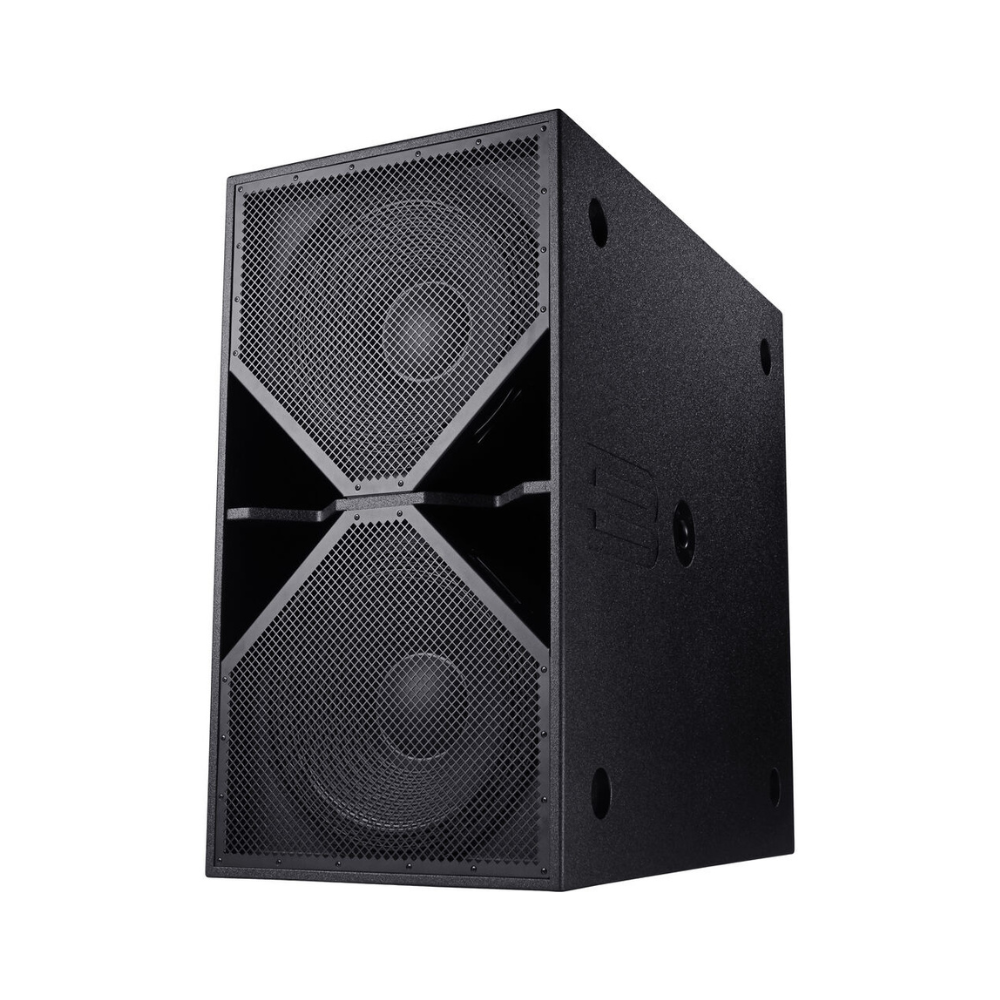

BASSBOSS ZV28-MK3 Ultra Deep Dual 18 Inch Powered Subwoofer
The BASSBOSS ZV28-MK3 takes professional bass beyond impact and turns the lowest frequencies into a physical part of the experience. Its dual 18 inch neodymium woofers reach down to an exceptionally deep 23Hz, extending to a ground shaking 21Hz when two cabinets are paired, revealing low frequency detail that many professional systems cannot reproduce. Driven by 5000W of Class D amplification, it produces 134 dB sustained and 137 dB peak SPL while retaining the precision and control required for festivals, touring productions, large clubs, outdoor events, and bass focused performances.
Why Choose the BASSBOSS ZV28-MK3?
Two independent 2500W amplifier channels provide dedicated power to the neodymium woofers, delivering sustained low frequency output with the headroom needed to preserve transient impact. Integrated protection manages clipping, temperature, short circuits, and DC offset, allowing the system to perform reliably under demanding professional conditions.
Integrated 96kHz DSP provides eight onboard presets, cardioid operation with multiple cabinets, and storage for up to 100 presets through ControlBASS. Milan AVB networking, remote system management, universal voltage compatibility, and touring grade construction make the ZV28-MK3 a compelling choice for professionals looking to buy an ultra deep subwoofer with advanced control and deployment flexibility.
Key Features
• Ultra deep 23Hz low frequency extension from a single cabinet
• Extension down to 21Hz when two cabinets are paired
• Dual 18 inch neodymium woofers with 4.5 inch CCAW voice coils
• 5000W Class D amplification through two independent 2500W channels
• 134 dB sustained output and 137 dB peak SPL
• Cardioid operation using multiple cabinets
• 96kHz DSP with 8 onboard presets
• Storage for up to 100 presets through ControlBASS
• Milan AVB networking and Ethernet remote control
• Soft clip, thermal, short circuit, and DC offset protection
• Universal 100 to 240V auto sensing power supply
• IP65 rated Neutrik powerCON True1 TOP power input
• Touring grade 18mm Baltic birch enclosure
• 16 M10 threaded fly points for professional deployment
Technical Specifications
| Category | Specification | Details |
|---|---|---|
| System | Configuration | Dual 18" Self Powered Vented Direct Radiating Subwoofer |
| Frequency Response | 23Hz to 90Hz (±3 dB) | |
| Pair Extension | 21Hz (±3 dB) | |
| Maximum Sustained Output | 134 dB SPL at 1m, Half Space | |
| Maximum Peak SPL | 137 dB SPL at 1m, Half Space | |
| Dispersion | 360° × 360° with Cardioid Mode Using Multiple Cabinets | |
| Amplification | Total Amplification | 5000W Class D |
| Amplifier Channels | 2 × 2500W | |

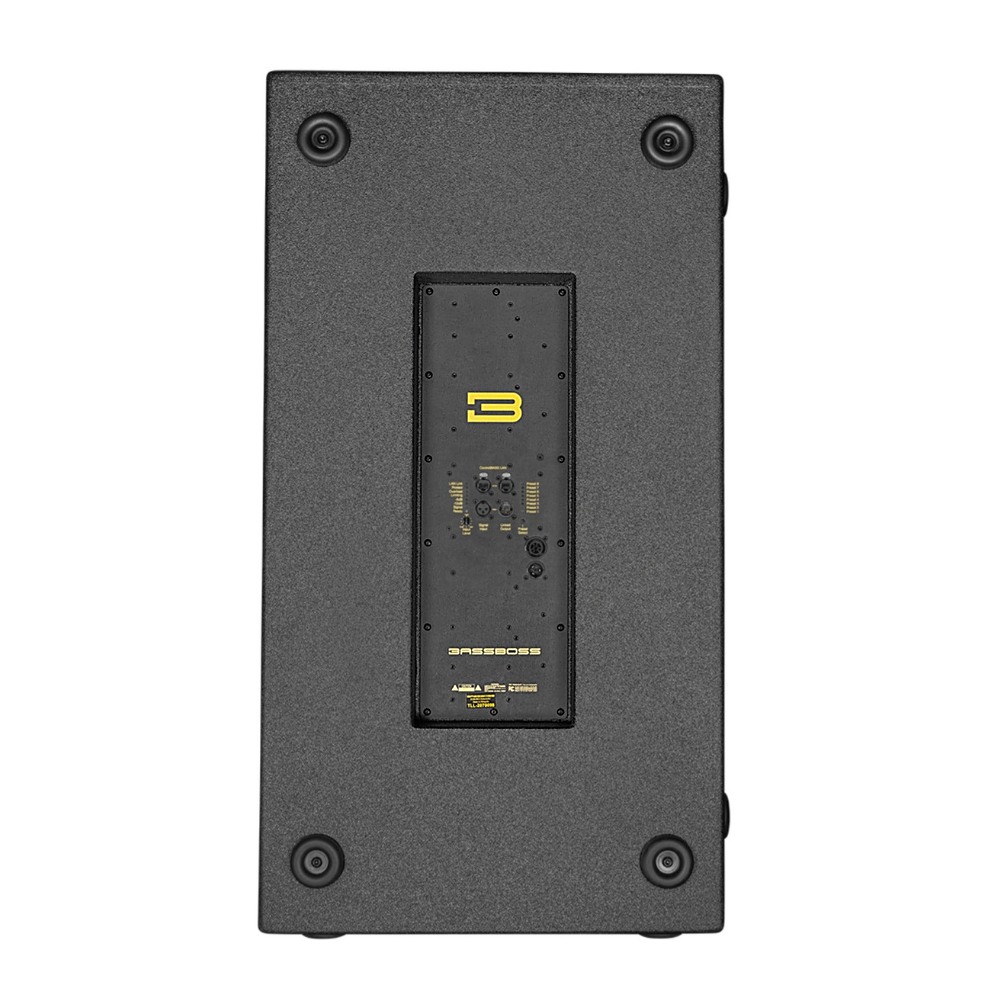

| Processing | DSP | 96kHz Sampling |
| Presets | 8 Push Button Presets with Storage for Up to 100 Presets | |
| Protection | Soft Clip Limiting, Thermal, Short Circuit, and DC Offset | |
| Cooling | Cooling System | Passive Heat Sink and Woofer Airflow with 4 Automatic Blower Fans |
| Transducers | Woofers | 2 × 18" Neodymium Woofers |
| Voice Coils | 4.5" CCAW Voice Coils | |
| Connectivity | Signal Input | Balanced XLR F |
| Signal Output | Balanced XLR M Direct Pass Through | |
| Network | 2 × EtherCON RJ45 with Milan AVB | |
| DSP Control | ControlBASS for macOS and Windows | |
| Power | Power Input | Neutrik powerCON True1 TOP, IP65, 15A/1800W |
| Power Output | Neutrik powerCON True1 Female, 6A/720W | |
| Operating Voltage | 100 to 240V AC, 50 to 60Hz, Auto Sensing | |
| Nominal Current Draw | 9A at 120V / 4.5A at 240V | |
| Construction | Cabinet | CNC Machined 18mm Baltic Birch Plywood |
| Finish | High Pressure Bonded Textured Polyurea | |
| Suspension | 16 × M10 Threaded Fly Points | |
| Physical | Dimensions | 22.5" × 42" × 42" (572 × 1067 × 1067mm) |
| Net Weight | 235 LB (106.5 KG) | |
| Shipping Weight | 297 LB (135 KG) |
Ideal Applications for the BASSBOSS ZV28-MK3
Designed for mid to large festival main stages, touring sound productions, large nightclub installations, concerts, live events, electronic and bass music events, cardioid subwoofer arrays, and large outdoor productions requiring exceptionally deep and controlled low frequency output.
Purchase Information
Items Included
The package includes one BASSBOSS ZV28-MK3 5000W Powered Dual 18 Inch Extended Depth Subwoofer and one power cord.
Limited Manufacturer Warranty
The limited manufacturer warranty provides 3 years of coverage for the electronics and 6 years of coverage for the cabinet.
Product Information
Brand: BASSBOSS
Model: ZV28-MK3
UPC: 855591006739
