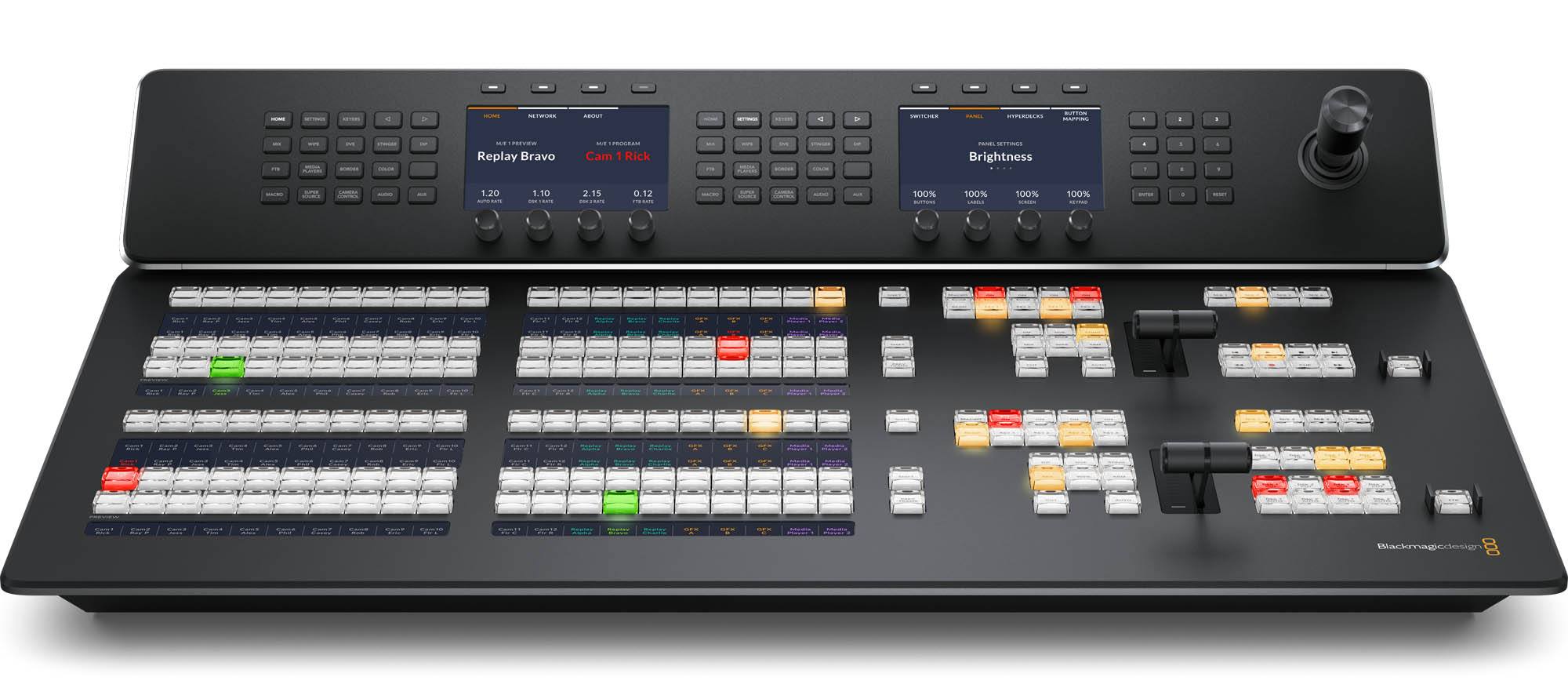

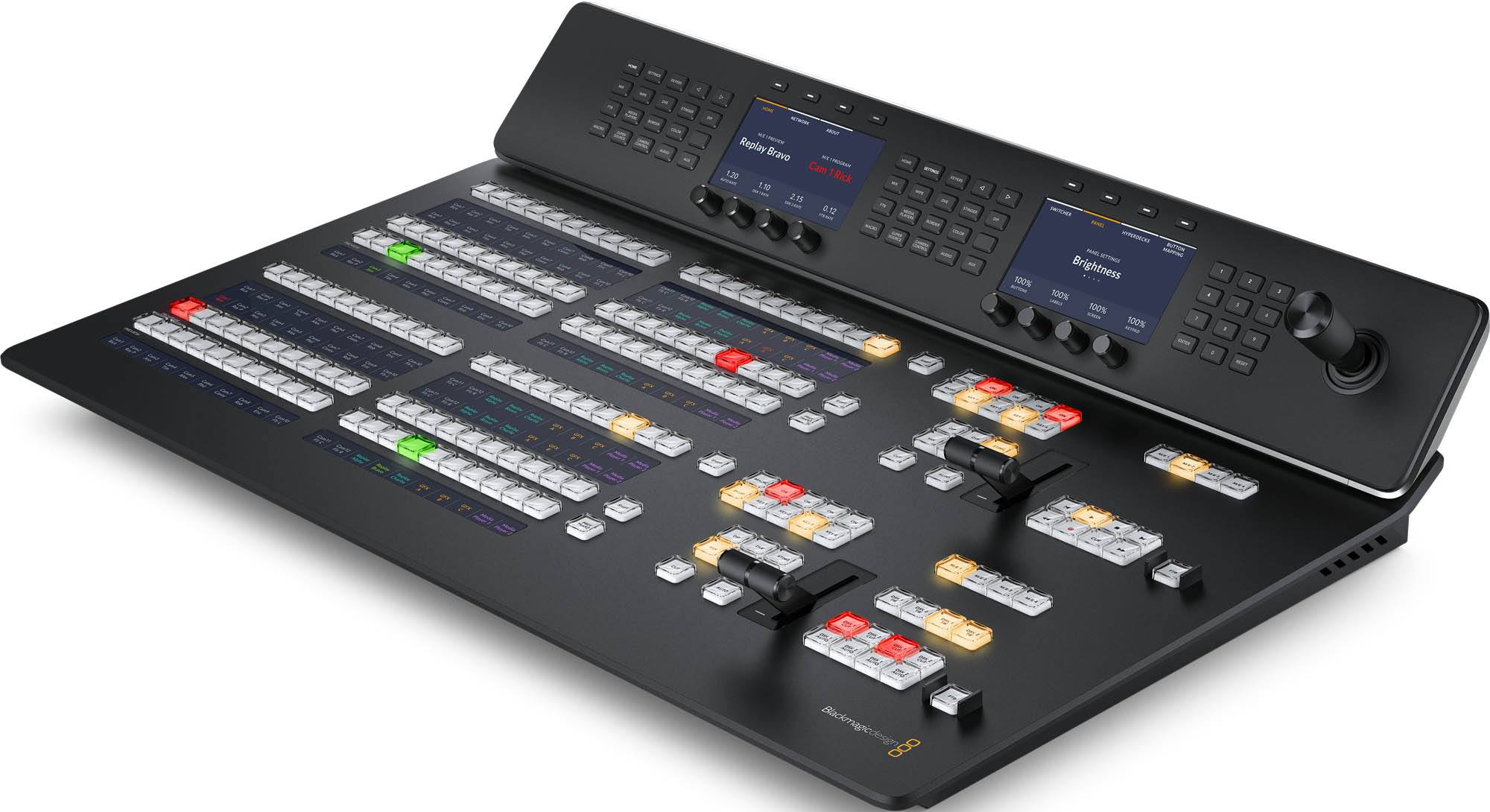

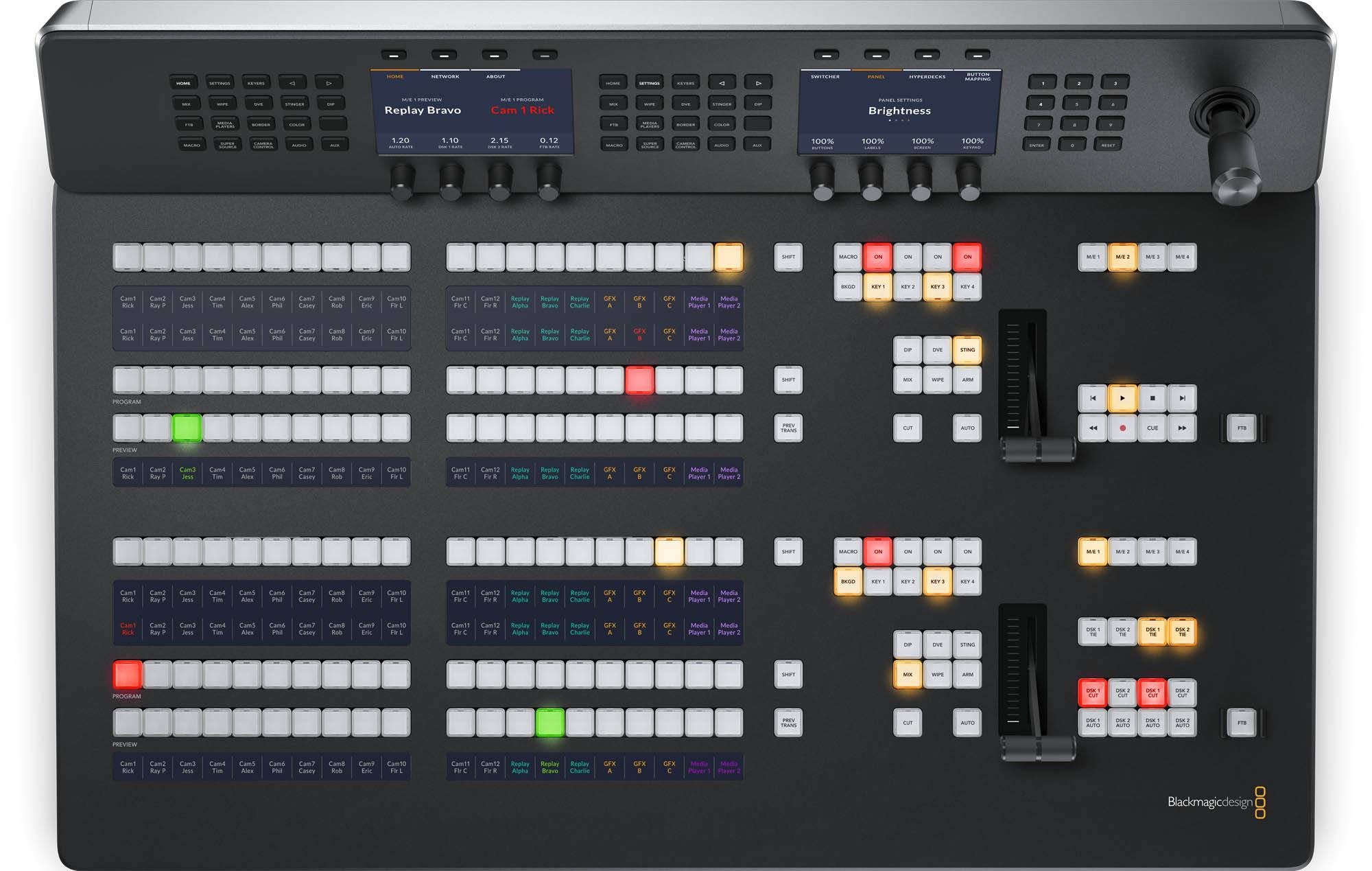

Blackmagic Design ATEM 2 M/E Advanced Panel 20 Panel for ATEM Constellation Switcher

Command complete control of your ATEM Constellation Switcher with the Blackmagic Design ATEM 2 M/E Advanced Panel 20.

This broadcast-grade control surface features 20 tactile input buttons per row across two M/E configurations, allowing you to manage up to 4 M/Es in larger systems. Each row includes an independent LCD readout for custom button labeling and real-time parameter adjustment. Seamlessly transition between sources using dedicated transition buttons and program/preview controls. The integrated joystick delivers precise DVE manipulation for video positioning, wipe pattern adjustments, and animated effects. Fine-tune chroma key parameters with tactile controls before going live, ensuring clean edges and professional multi-layer compositing.

Manage all ATEM switcher settings directly from the panel.

Built for high-pressure production environments where reliability and responsive control matter. ATEM Constellation Switcher sold separately.

Blackmagic Design SWPANELADV2ME20 Features:

• 2 M/E rows
• 20 input buttons per row
• Independent system LCDs for each row
• Broadcast-quality buttons, knobs, and T-bar faders
• Controls ATEM switchers from the surface

Blackmagic Design SWPANELADV2ME20 Specifications:

• Connections
  • Ethernet: 4 x 10/100/1000 BaseT with loop output
  • for additional control panels or computers.
  • software-updates: 1 x USB-C for firmware updates.
• Product Specifics
• Number of Mix Effects Rows: 2
• Direct Cross Points: 20
• Shifted Cross Points: 40
• Crosspoint Button Type: Tri-Color LED
• Crosspoint Label: 6 rows 24 character LCD
• Next Transition Selectors: 2 x BKG, Key 1 - Key 4.
• On-Air indicator: 8
• Power Status Indicators: None
• DSK Transition Selectors: Auto, Cut, Tie/Preview x 2
• Preview Transition: 2
• Transition Rate Displays: Via main menu
• LCD Menu Displays: 2
• Menu Control: 20 buttons x 2
• Dedicated Macro Buttons: 2 x 20
• Transport Control Buttons: 8
• Destination Bus: 2
• Source Select Bus: 2
• Fader Bar: 2
• 3 Axis Joystick: 1
• Numeric Keypad: 1
• Software
• Software Applications: ATEM Software Control Panel.
• Operating Systems
  • Mac 10.14 Mojave,
  • Mac 10.15 Catalina or later.
  • Windows 10, 64-bit.
• Power Requirements
  • Input Voltage: 2 x Internal 100 - 240V AC.
  • Redundant Power: Yes
  • Power Usage: 150W
• Environmental Specifications
  • Operating Temperature: 0° to 40° C (32° to 104° F)
  • Storage Temperature: -20° to 60° C (-4° to 140° F)
  • Relative Humidity: Up to 95%
