Nord Electro 7 - 61-Key Semi Weighted Waterfall Keybed
Special Order
This item ships directly from the manufacturer. Delivery estimates are approximate and are not guaranteed.
You will be charged once the distributor receives and processes the order, which typically occurs within 24 hours.
Orders paid with digital wallets are charged immediately at checkout.

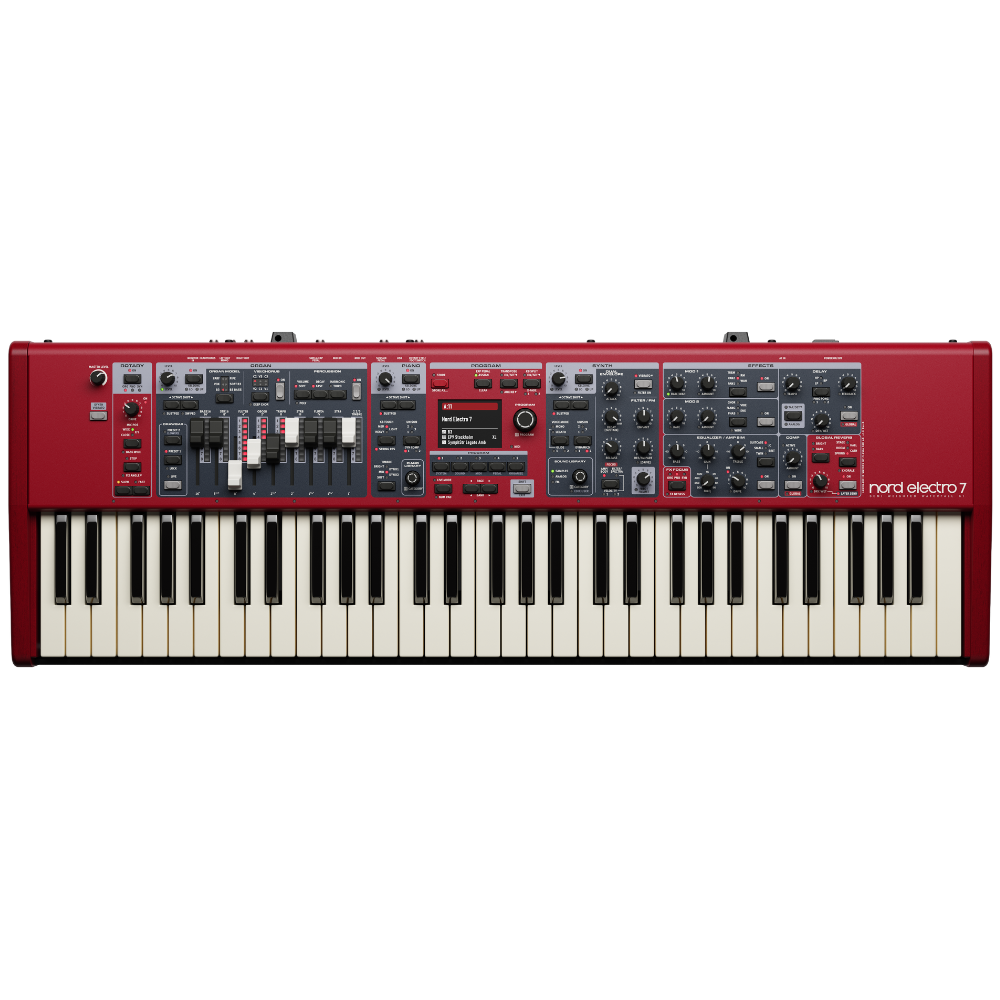

Nord Electro 7 61 Stage Keyboard with Semi Weighted Waterfall Keybed
The Nord Electro 7 61 combines a 61 key Semi Weighted Waterfall keybed with a powerful new Synth Section, dedicated effects for each sound section, and a refined panel built around a high resolution color display. Its updated architecture brings together Nord’s latest Piano features with Organ and Rotary Speaker technology derived from the Nord Organ 3, while physical drawbars with LED indicators, Sample, Analog, and FM synthesis, and a lightweight 18.3 lb design provide immediate control and broad sonic flexibility for live performance.
Why Choose the Nord Electro 7 61?
The Organ section combines B3, B3+Bass, Soft B3, Vox, Farfisa, and Pipe models with full polyphony, physical drawbars, Live Drawbar operation, and an updated Rotary Speaker with selectable microphone positions. The Piano section adds Dynamic Compression, Unison, String Resonance, Timbre settings, and three Keyboard Touch settings while maintaining compatibility with the Nord Piano Library.
The new Synth section significantly expands the Electro platform with Sample playback, Analog and FM synthesis, Low Pass filtering, envelope control, Mono, Legato, Glide, Unison, and Synth Vibrato. Dedicated effects for the Organ, Piano, and Synth sections make individual sound shaping more immediate. For musicians looking to buy a lightweight performance keyboard that combines organ focused controls, premium piano sounds, and expanded synthesis in one instrument, the Nord Electro 7 61 offers an exceptionally flexible stage focused workflow.
Key Features

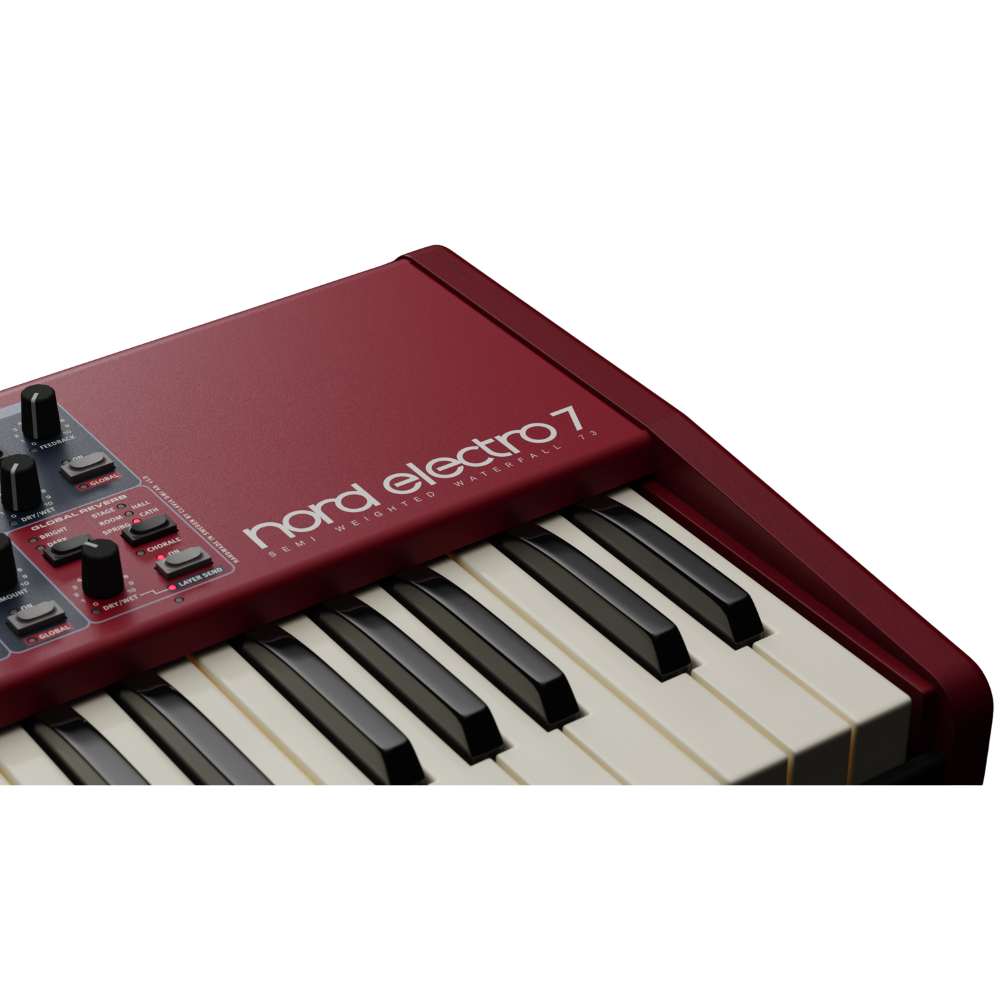

• 61 key Semi Weighted Waterfall keyboard with 5 octave C to C range
• Organ, Piano, and Synth sound sections within a lightweight stage ready instrument
• New Synth Section with Sample, Analog, and FM synthesis
• Organ engine derived from the Nord Organ 3 with B3, B3+Bass, Soft B3, Vox, Farfisa, and Pipe models
• Updated Rotary Speaker with selectable microphone positions and Slow, Fast, and Stop operation

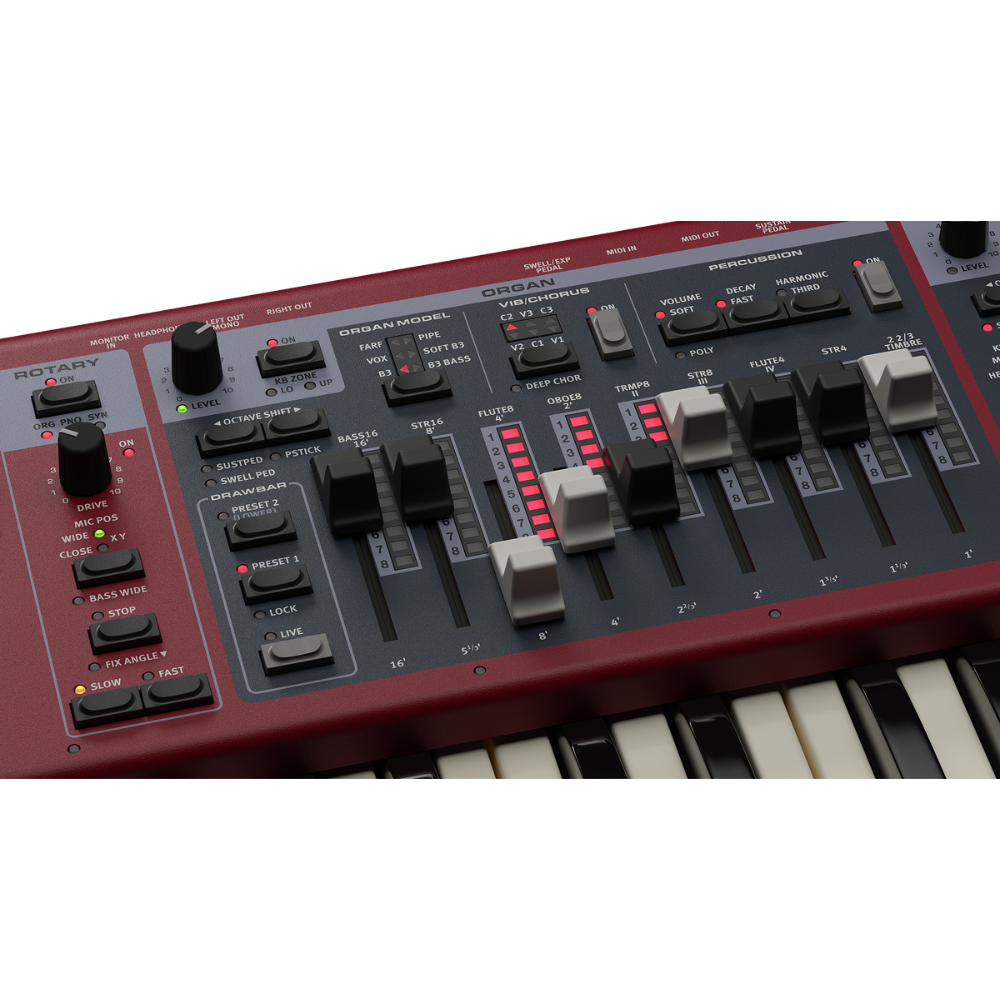

• Physical drawbars with LED indicators plus Organ presets and Live Drawbars
• Updated Piano section with Dynamic Compression, Unison, String Resonance, Timbre settings, and 120 voice polyphony
• Dedicated effects for individual sound sections

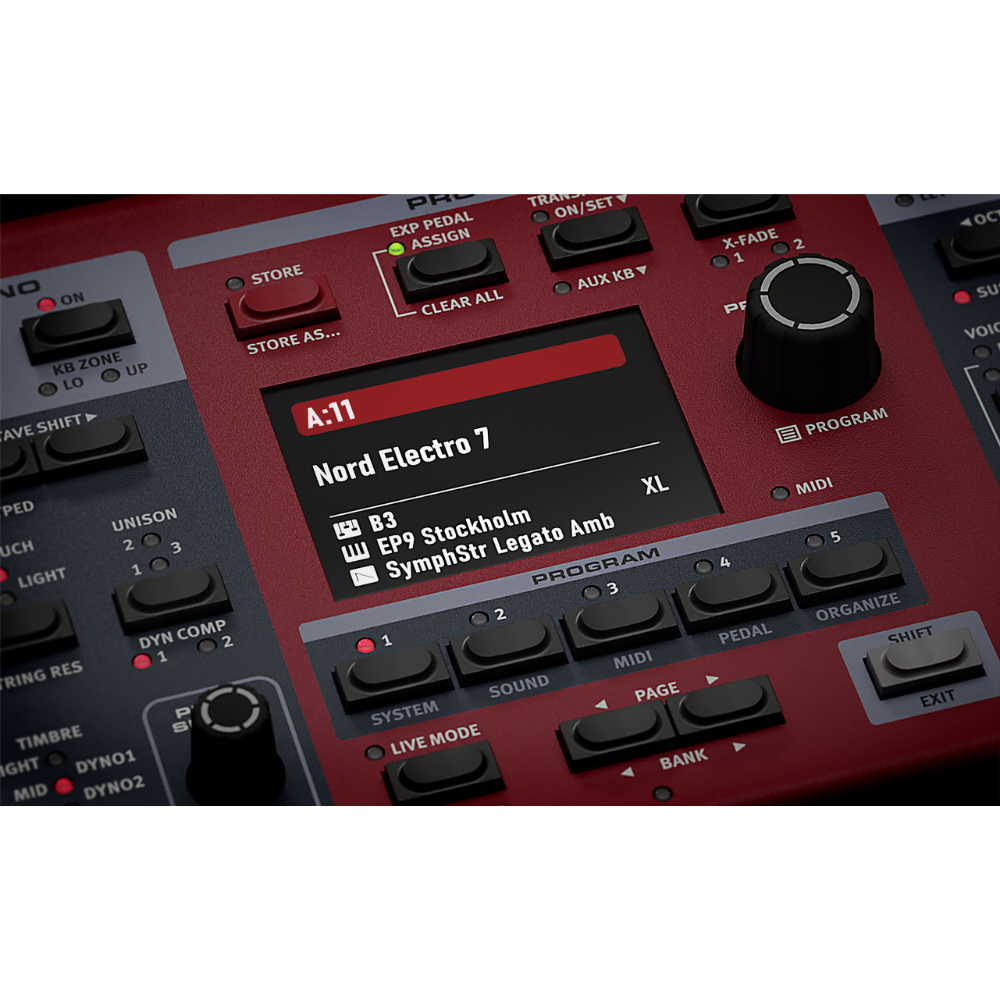

• High resolution color display with updated Program Section and Push Encoder navigation
• 500 Program locations across 20 banks plus 5 Live Programs
• Selectable Split Point with LED indication and Split Point Crossfades
• External keyboard Aux KB functionality
• Expression Pedal Assign for Synth Filter and effect parameter control
• Seamless Transitions between programs
• MIDI over USB
Technical Specifications
| Category | Specification | Details |
|---|---|---|
| Keyboard | Keybed | 61 key Semi Weighted Waterfall keyboard |
| Range | 5 octaves, C to C | |
| General | Display | High resolution color display |
| Sound Sections | Organ, Piano, and Synth | |
| Seamless Transitions | Yes | |
| Split Point Crossfades | Yes | |
| Split Point | Selectable with LED indication, 9 locations | |
| External Keyboard | Aux KB feature | |
| Expression Pedal Assign | Control of Synth Filter and multiple effect parameters | |
| Programs | Program Memory | 500 locations |
| Program Organization | 20 banks with 25 programs each | |
| Live Mode | 5 Live programs | |
| Program Organization Function | Organize for programs | |
| Transposition & Tuning | Global Transpose | +/- 6 semitones |
| Program Transpose | +/- 6 semitones | |
| Global Fine Tune | +/- 50 Cents | |
| Organ Section | Organ Models | B3, B3+Bass, Soft B3, Vox, Farfisa, Pipe |
| Polyphony | Full polyphony | |
| Drawbars | Physical Drawbars with LED indicators | |
| Organ Presets | 2 Organ manual Presets and Live Drawbars | |
| B3 Percussion | Percussion Controls with Poly option | |
| Vibrato/Chorus | B3 Deep mode | |
| Percussion Controls | Adjustable level and decay | |
| Tonewheel Modes | 3 selectable modes | |
| Rotary Speaker | Selectable microphone positions, Slow/Fast and Stop | |
| Half Moon Switch | Mount available on Electro 7 61 | |
| Piano Section | Piano Categories | Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord, Misc/Mallet |
| Piano Library | Compatible with Nord Piano Library | |
| Polyphony | 120 voices | |
| String Resonance | Yes | |
| Timbre | Individually tailored settings for acoustic, electric, and clavinet sounds | |
| Keyboard Touch | 3 settings | |
| Dynamic Compression | Yes | |
| Unison | 3 amount options | |
| Synth Section | Synthesis | Sample, Analog, and FM |
| Sample Library | Compatible with Nord Sample Library | |
| Preset Library | Analog and FM sounds | |
| Envelope | Amp and Filter/FM ADR/ASR envelopes | |
| Filter/FM Envelope | Velocity and Amount controls | |
| Analog/Sample Filter | Low Pass with Cutoff and Resonance | |
| FM Controls | Amount and Partial | |
| Playing Modes | Mono and Legato | |
| Glide | Yes | |
| Unison | 3 amount options | |
| Synth Vibrato | Yes | |
| Analog Mode | Yes | |
| Global Mode | Yes | |

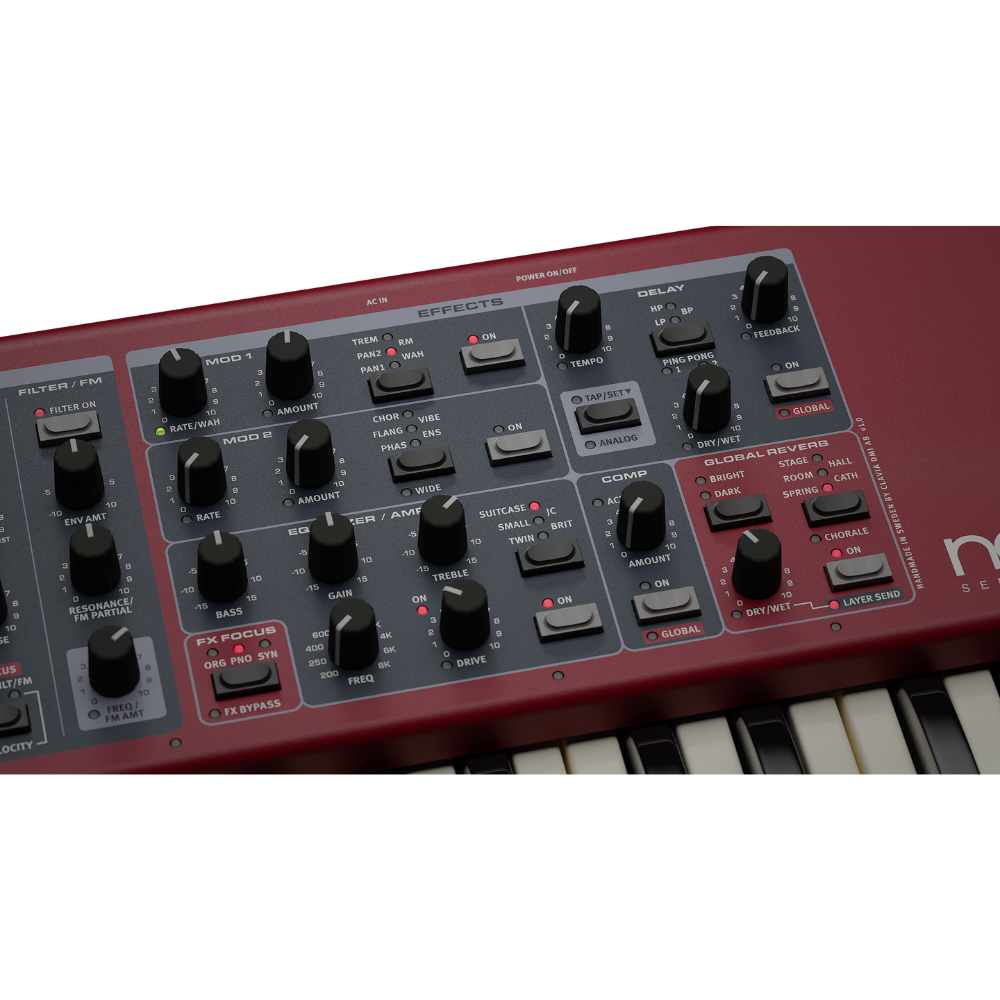

| Effects | Effect Architecture | Dedicated Effects per Section |
| Modulation Controls | Rate and Amount | |
| Modulation Effects | Ring Modulator, Vibe and additional modulation effects | |
| Amplifier Models | Suitcase and Brit among available models | |
| Compressor | Amount control; selectable per Section or Global | |
| Global Reverb | Optional Send per Layer | |
| Reverb Types | Spring, Room, Stage, Hall, Cathedral | |
| Reverb Options | Chorale and Bright/Dark | |
| Delay | Feedback Filters, Ping Pong, Analog Mode, Tap Tempo, and Global option | |
| Equalizer | 3 band EQ with sweepable mid | |

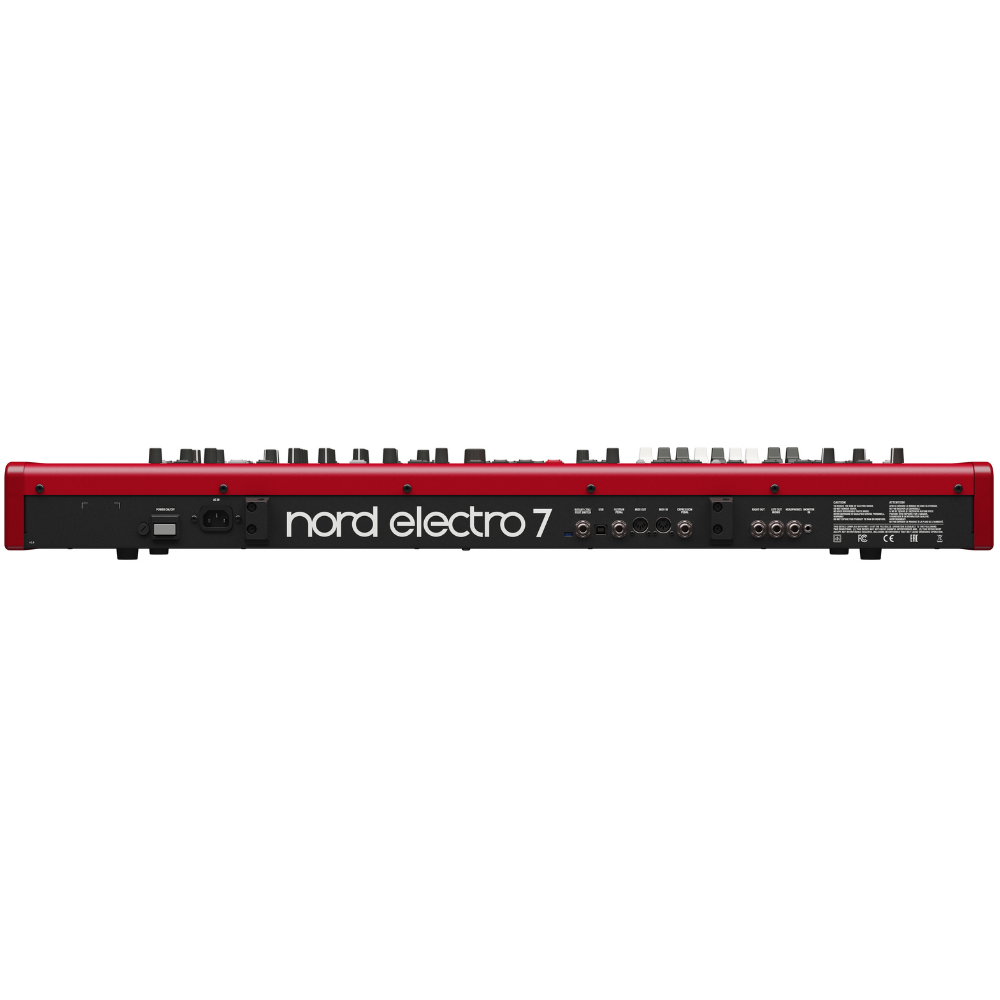

| Connectivity | Audio Outputs | 2 × 1/4 in unbalanced L and R |
| Monitor Input | 1 × 1/8 in stereo | |
| Headphone Output | 1 × 1/4 in stereo | |
| Expression Pedal Input | 1 × 1/4 in TRS | |
| Sustain Pedal | 1 × 1/4 in | |
| Rotary Control / Foot Switch | 1 × 1/4 in | |
| MIDI In | 5 pin DIN | |
| MIDI Out | 5 pin DIN | |
| USB | Type B for USB MIDI, software updates, and sound transfer | |
| Power | Power Connection | IEC C14 |
| Physical Information | Dimensions | 35.5 × 4.1 × 11.6 in (901 × 104 × 294 mm) |
| Net Weight | 18.3 lb (8.3 kg) |
Ideal Applications for the Nord Electro 7 61
The Nord Electro 7 61 is designed for live keyboard performance where organ, piano, and synthesizer sounds need to be combined with immediate physical control, a responsive Semi Weighted Waterfall keybed, flexible sound shaping, and a lightweight stage ready format.
Purchase Information
Items Included
User Manual and power cord are included.
Product Information
Brand: Nord
Model: NELECTRO7-61
UPC: 834035001783
