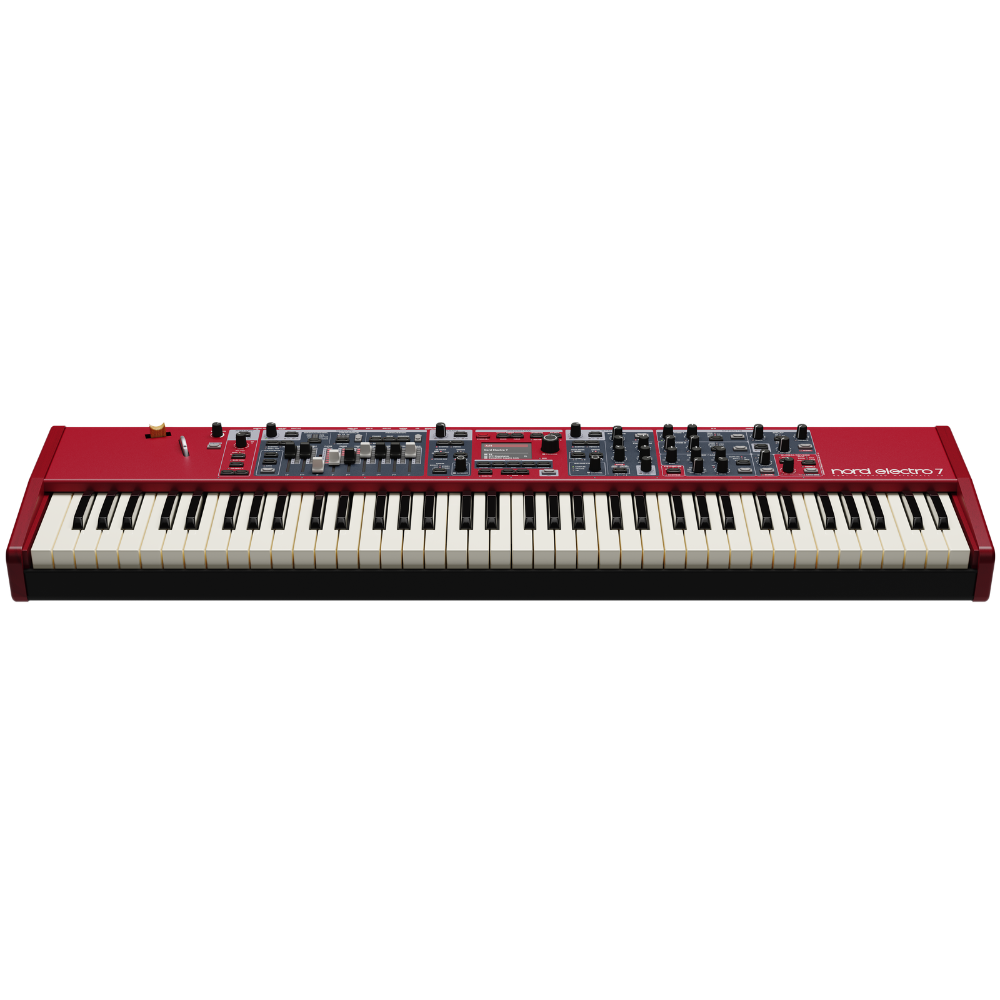

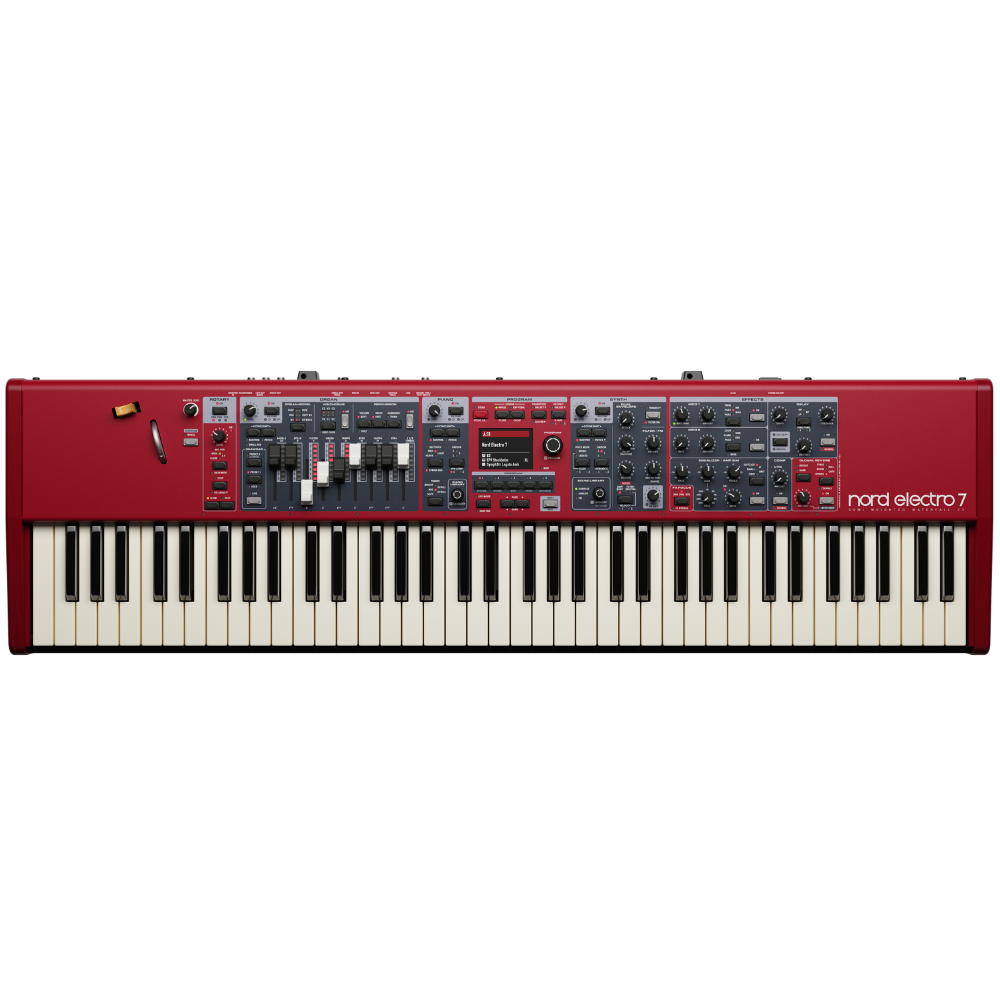

Nord Electro 7 73 Stage Keyboard with Semi Weighted Waterfall Keybed
The Nord Electro 7 73 combines a 73 key Semi Weighted Waterfall keybed with a powerful new Synth Section, dedicated effects for each sound section, and a refined panel centered around a high resolution color display. Organ and Rotary Speaker technology derived from the Nord Organ 3 joins an updated Piano section and expanded Sample, Analog, and FM synthesis, while physical drawbars with LED indicators, Pitch Stick, Modulation Wheel, and a lightweight stage ready design provide immediate control across a broad range of live performance sounds.
Why Choose the Nord Electro 7 73?
The Organ section combines B3, B3+Bass, Soft B3, Vox, Farfisa, and Pipe models with physical drawbars, Live Drawbar operation, full polyphony, and Rotary Speaker emulation featuring selectable microphone positions. The Piano section adds Dynamic Compression, Unison, String Resonance, and flexible Timbre settings while maintaining access to sounds from the Nord Piano Library.
The new Synth section significantly expands the Electro platform with Sample playback, Analog and FM synthesis, filter and envelope controls, Mono and Legato modes, Glide, Unison, and real time Synth Vibrato. Dedicated effects for the Organ, Piano, and Synth sections provide independent sound shaping, while the 73 key model adds Pitch Stick and Modulation Wheel for greater performance control. For musicians looking to buy a lightweight professional keyboard that combines organ focused controls, expressive piano sounds, and expanded synthesis, the Nord Electro 7 73 provides a versatile stage focused workflow.
Key Features

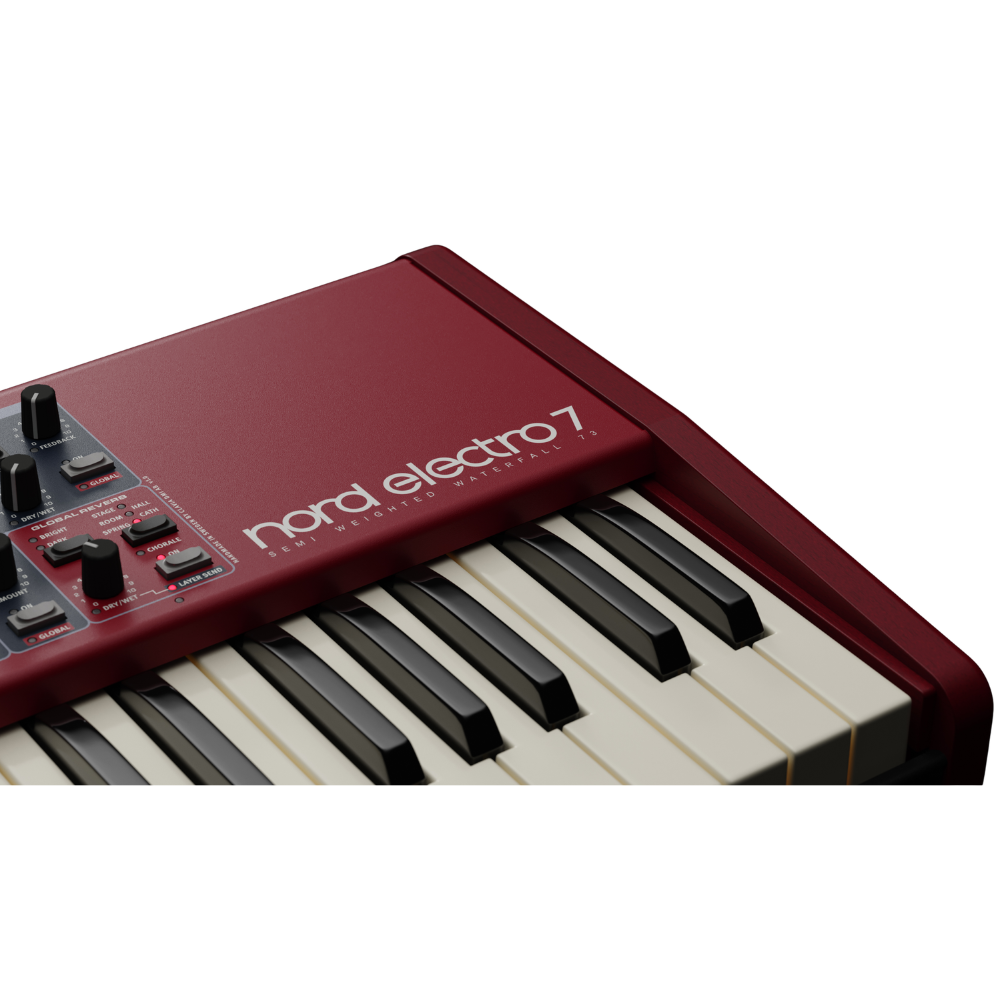

• 73 key Semi Weighted Waterfall keybed with 6 octave E to E range
• New Synth Section with Sample playback, Analog, and FM synthesis
• Organ engine based on the Nord Organ 3 with updated organ models and Rotary Speaker emulation

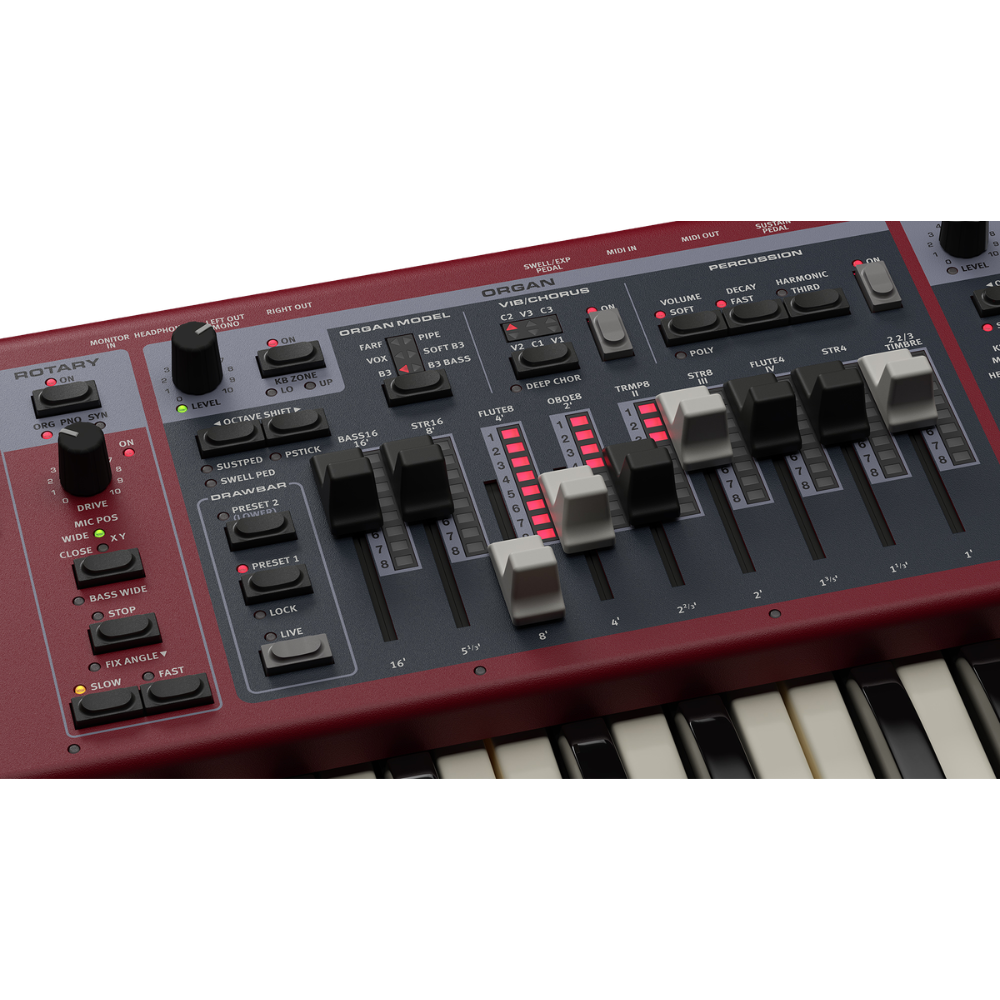

• Physical drawbars with LED indicators plus Live Drawbar operation and Organ presets
• Rotary Speaker with Close, Wide, and XY microphone positions
• Updated Piano section with 120 voice polyphony, Dynamic Compression, Unison, String Resonance, and Timbre settings

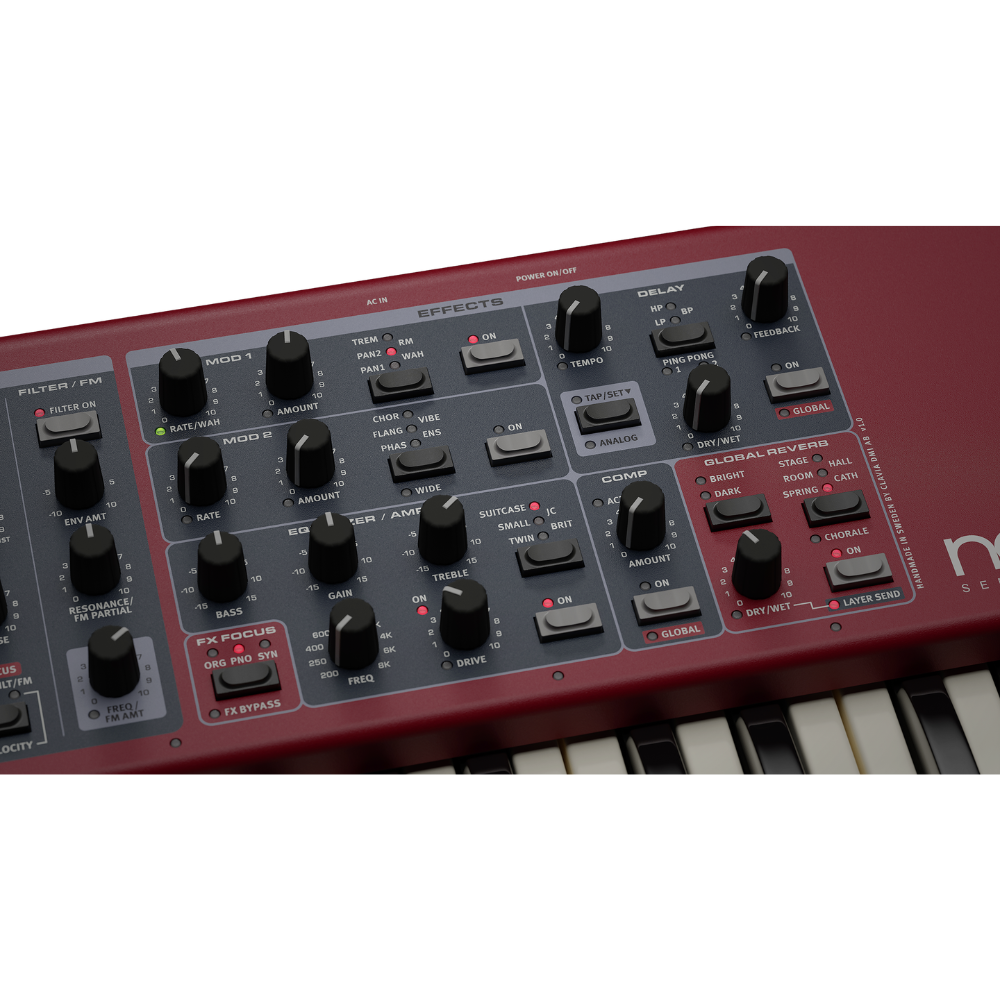

• Dedicated effects for Organ, Piano, and Synth sections

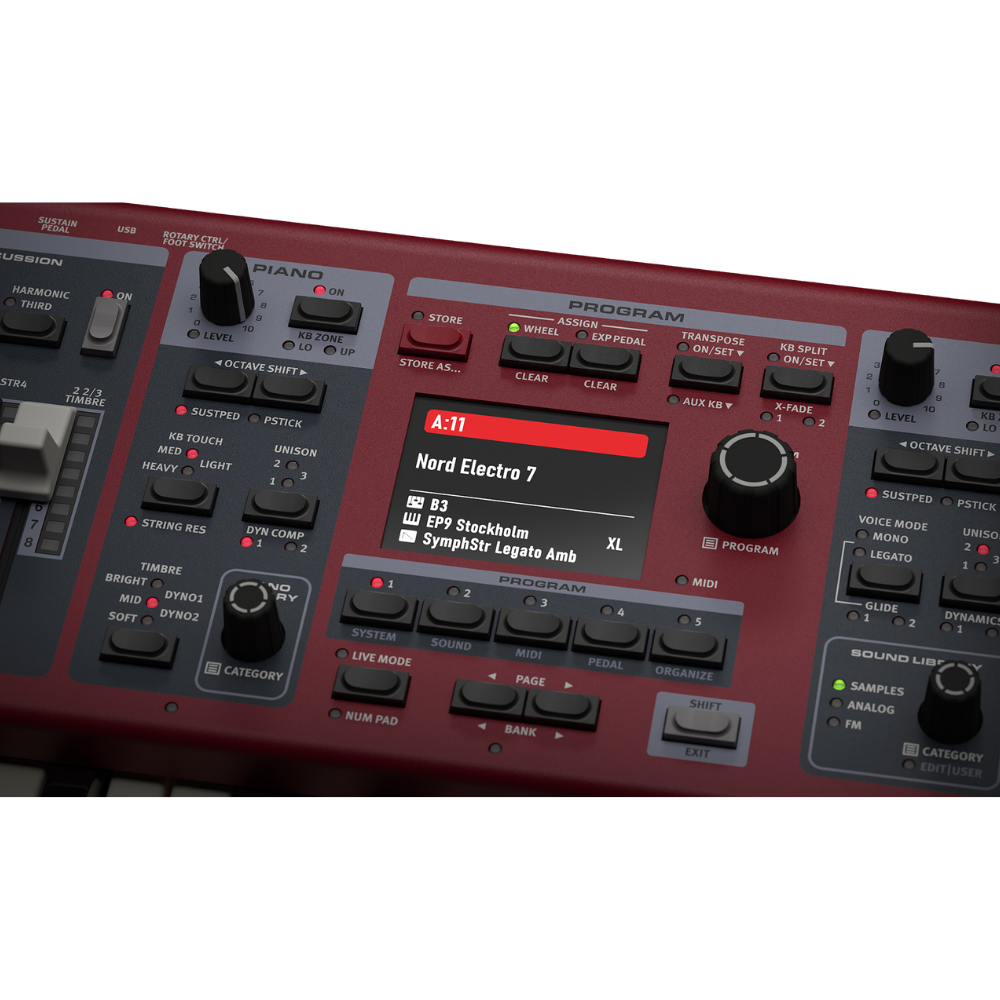

• High resolution color display with Push Encoder navigation for sounds, categories, and programs

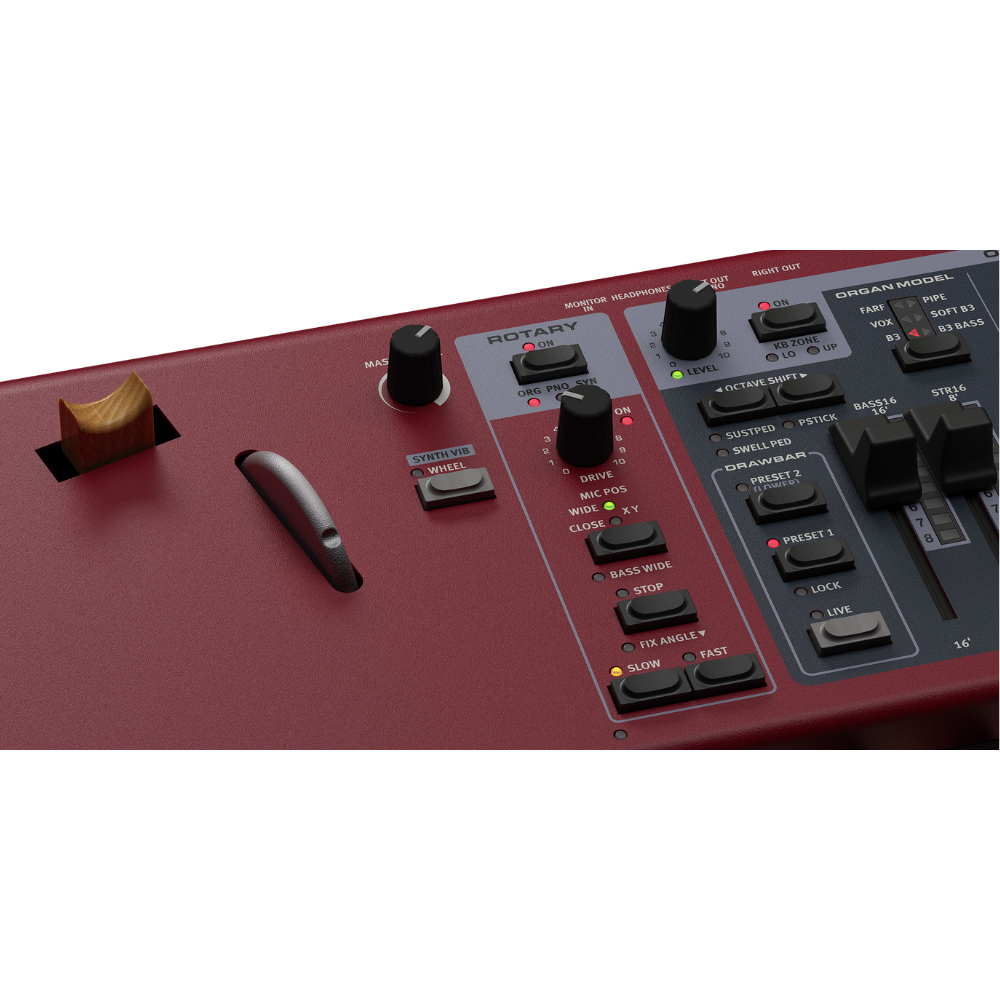

• Pitch Stick and Modulation Wheel for real time performance control
• 500 Program locations across 20 banks plus 5 Live Programs
• Selectable Split Point with LED indication and Split Point Crossfades
• External keyboard Aux KB functionality
• Expression Pedal Assign for Synth Filter and effect parameter control
• Seamless Transitions between programs
• MIDI over USB functionality
Technical Specifications
| Category | Specification | Details |
|---|---|---|
| Keyboard | Keybed | 73 key Semi Weighted Waterfall keyboard |
| Range | 6 octaves, E to E | |
| General | Display | High resolution color display |
| Sound Sections | Organ, Piano, and Synth | |
| Performance Controls | Pitch Stick and Modulation Wheel | |
| Seamless Transitions | Yes | |
| Split Point Crossfades | Yes | |
| Split Point | Selectable with LED indication, 9 locations | |
| External Keyboard | Aux KB feature | |
| Expression Pedal Assign | Synth Filter and multiple effect parameters | |
| Programs | Program Memory | 500 locations |
| Program Organization | 20 banks with 25 programs each | |
| Live Mode | 5 Live programs | |
| Organize | Available for programs | |
| Transposition & Tuning | Global Transpose | +/- 6 semitones |
| Program Transpose | +/- 6 semitones | |
| Global Fine Tune | +/- 50 Cents | |
| Organ Section | Organ Models | B3, B3+Bass, Soft B3, Vox, Farfisa, and Pipe |
| Polyphony | Full polyphony | |
| Drawbars | Physical drawbars with LED indicators | |
| Organ Presets | 2 Organ manual Presets and Live Drawbars | |
| B3 Percussion | Percussion Controls with Poly option | |
| Vibrato/Chorus | B3 Deep mode | |
| Percussion | Adjustable level and decay | |
| Tonewheel Modes | 3 selectable modes | |
| Rotary Speaker | Emulation | Based on Nord Organ 3 |
| Microphone Positions | Close, Wide, and XY | |
| Bass Wide | Stereo option | |
| Drive | Dedicated tube Drive control | |
| Stop Position | User adjustable Fix Angle option | |
| Piano Section | Piano Categories | Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord, Misc/Mallet |
| Piano Library | Compatible with Nord Piano Library | |
| Polyphony | 120 voices | |
| String Resonance | Yes | |
| Timbre | Individual settings for acoustic, electric, and clavinet sounds | |
| Keyboard Touch | 3 settings | |
| Dynamic Compression | Yes | |
| Unison | 3 amount options | |
| Synth Section | Synthesis | Sample, Analog, and FM |
| Sample Library | Compatible with Nord Sample Library | |
| Preset Library | Analog and FM sounds | |
| Envelopes | Amp and Filter/FM ADR/ASR | |
| Filter/FM Envelope | Velocity and Amount controls | |
| Analog/Sample Filter | Low Pass with Cutoff and Resonance | |
| FM Controls | Amount and Partial | |
| Playing Modes | Mono and Legato | |
| Glide | Yes | |
| Unison | 3 amount options | |
| Dynamics | 3 amp velocity options | |
| Vibrato | Adjustable Rate, Amount, and Delay | |
| Synth Vibrato | Real time control | |
| Polyphony | 30+ voices | |
| Effects | Architecture | Dedicated Effects for Organ, Piano, and Synth |
| FX Focus | FX Bypass option | |
| Expression Control | Expression Pedal assignable to most effect parameters | |
| Modulation Effects | Mod 1 | Pan1, Pan2, Tremolo, Wah, Ring Modulator |
| Mod 1 Controls | Dedicated Rate and Amount | |
| Mod 2 | Phaser, Flanger, Chorus, Vibe, Ensemble | |
| Mod 2 Controls | Dedicated Rate and Amount | |
| Stereo Width | Wide option | |
| EQ & Amp Simulation | Amp Models | Twin, Small, Suitcase, JC, and Brit |
| Drive | Yes | |
| Equalizer | 3 band with sweepable mid | |
| EQ Range | +/- 15 dB gain/attenuation | |
| Delay | Tempo | Tap function |
| Controls | Feedback and Dry/Wet | |
| Feedback Filters | Low Pass, High Pass, and Band Pass | |
| Ping Pong | 3 amount options | |
| Analog Mode | Yes | |
| Global Mode | Yes | |
| Compressor | Control | Amount |
| Global Option | Yes | |
| Reverb | Global Reverb | Layer Send mode for individual reverb level per section |
| Reverb Types | Spring, Room, Stage, Hall, Cathedral | |
| Spring Reverb | Positioned before Rotary Speaker | |
| Chorale | Available for all reverb types | |
| Reverb Modes | Bright/Dark | |
| Control | Dry/Wet | |

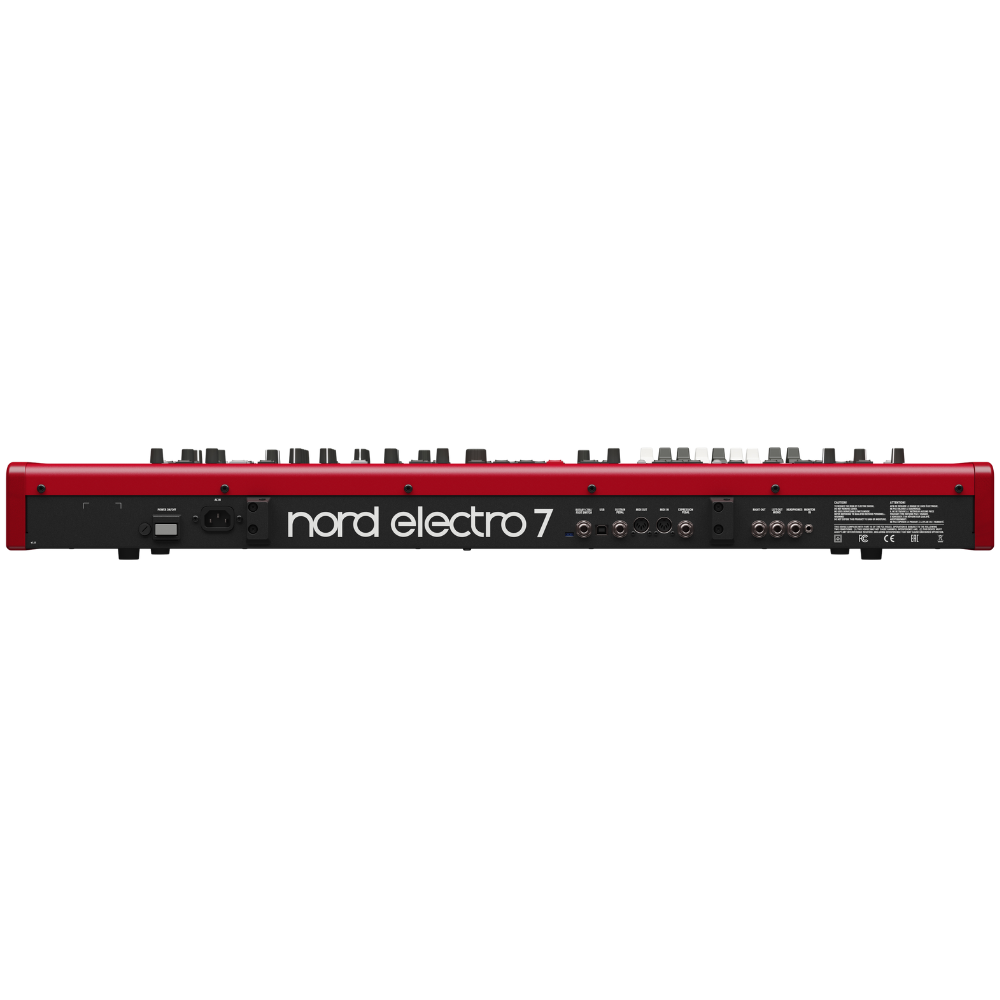

| Connectivity | Audio Outputs | 2 × 1/4 in unbalanced L and R |
| Monitor Input | 1 × 1/8 in stereo | |
| Headphone Output | 1 × 1/4 in stereo | |
| Expression Pedal Input | 1 × 1/4 in TRS | |
| Sustain Pedal | 1 × 1/4 in | |
| Rotary Control / Foot Switch | 1 × 1/4 in | |
| MIDI In | 5 pin DIN | |
| MIDI Out | 5 pin DIN | |
| USB | Type B for USB MIDI, software updates, and sound transfer | |
| Power | Power Connection | IEC C14 |
| Physical Information | Dimensions | 42 × 4.1 × 11.6 in (1066 × 104 × 294 mm) |
| Net Weight | 20.9 lb (9.5 kg) |
Ideal Applications for the Nord Electro 7 73
The Nord Electro 7 73 is designed for live keyboardists who need an extended 73 key Semi Weighted Waterfall keyboard with immediate organ control, expressive piano sounds, expanded synthesizer capabilities, flexible effects, and real time performance controls in a lightweight professional instrument.
Purchase Information
Items Included
User Manual and power cord are included.
Product Information
Brand: Nord
Model: NELECTRO7-73
UPC: 834035001790
