Nord Electro 7 HP Stage Keyboard with Kawai Triple Sensor Hammer Action
The Nord Electro 7 HP combines a 73 key Kawai Triple Sensor Hammer Action Portable keybed with a powerful new Synth Section, dedicated effects for each sound section, and a refined panel centered around a high resolution color display. Designed to balance expressive piano response with portability, it brings together Nord’s updated Piano features, Organ and Rotary Speaker technology derived from the Nord Organ 3, physical drawbars with LED indicators, and Sample, Analog, and FM synthesis in a versatile stage ready instrument.
Why Choose the Nord Electro 7 HP?

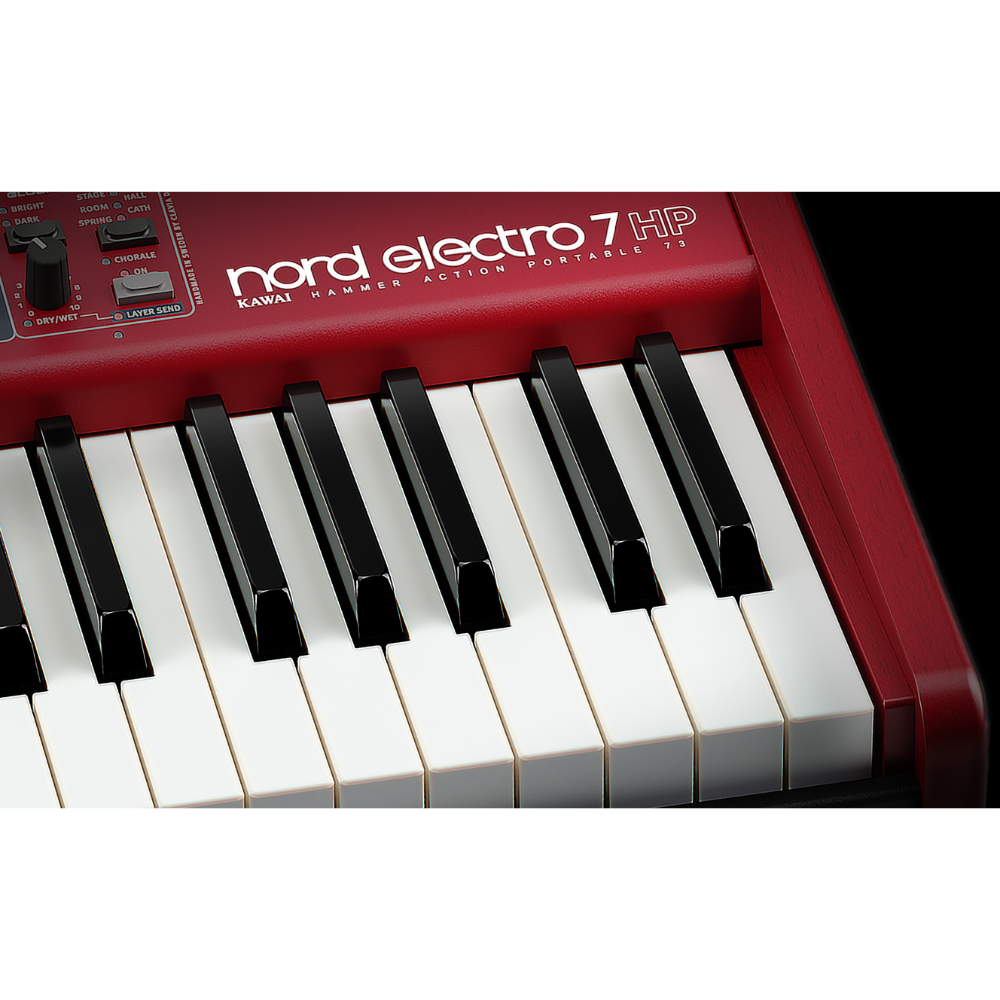

The defining feature of the Electro 7 HP is its 73 key Triple Sensor Kawai Hammer Action Portable keybed, developed to provide responsive acoustic and electric piano performance while keeping the instrument practical for stage use. Pitch Stick and Modulation Wheel controls add real time expression, while the Piano section provides 120 voice polyphony, Dynamic Compression, Unison, String Resonance, Timbre settings, and three Keyboard Touch settings.
The Organ section combines B3, B3+Bass, Soft B3, Vox, Farfisa, and Pipe models with physical drawbars, Live Drawbar operation, and Rotary Speaker emulation featuring selectable microphone positions. The new Synth section expands the Electro platform with Sample playback, Analog and FM synthesis, filter and envelope controls, Mono and Legato modes, Glide, Unison, and real time Synth Vibrato. For musicians looking to buy a performance keyboard that places authentic hammer action at the center of a flexible Piano, Organ, and Synth platform, the Nord Electro 7 HP offers a compelling balance of playability, sound design, and portability.
Key Features
• 73 key Kawai Triple Sensor Hammer Action Portable keybed with 6 octave E to E range
• Responsive hammer action designed for expressive acoustic and electric piano performance
• New Synth Section with Sample playback, Analog, and FM synthesis
• Organ engine based on the Nord Organ 3 with updated organ models and Rotary Speaker emulation

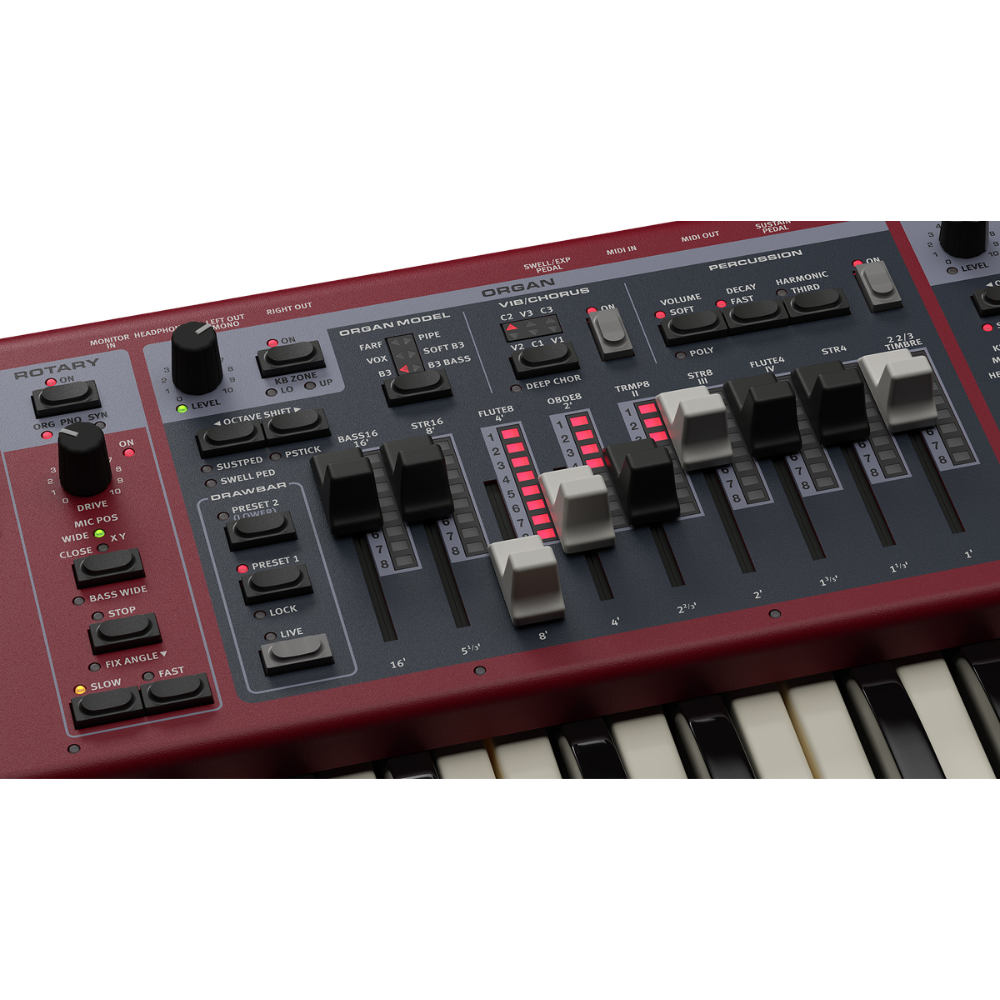

• Physical drawbars with LED indicators plus Live Drawbar operation and Organ presets
• Rotary Speaker with Close, Wide, and XY microphone positions
• Updated Piano section with 120 voice polyphony, Dynamic Compression, Unison, String Resonance, and Timbre settings
• Dedicated effects for Organ, Piano, and Synth sections

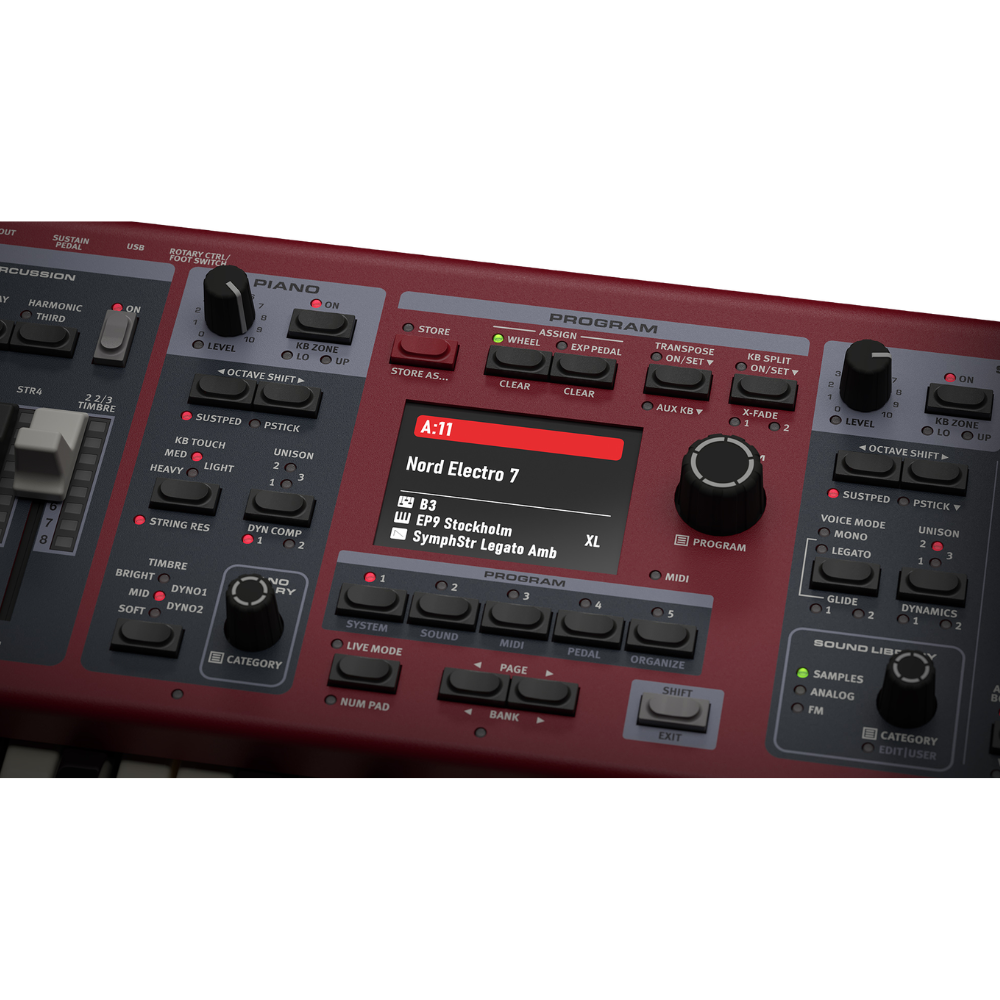

• High resolution color display with Push Encoder navigation for sounds, categories, and programs
• Pitch Stick and Modulation Wheel for real time performance control
• 500 Program locations across 20 banks plus 5 Live Programs
• Selectable Split Point with LED indication and Split Point Crossfades
• External keyboard Aux KB functionality
• Expression Pedal Assign for Synth Filter and effect parameter control
• Seamless Transitions between programs
• MIDI over USB functionality
Technical Specifications
| Category | Specification | Details |
|---|---|---|
| Keyboard | Keybed | 73 key Triple Sensor Kawai Hammer Action Portable keyboard |
| Range | 6 octaves, E to E | |
| General | Display | High resolution color display |
| Sound Sections | Organ, Piano, and Synth | |
| Performance Controls | Pitch Stick and Modulation Wheel | |
| Seamless Transitions | Yes | |
| Split Point Crossfades | Yes | |
| Split Point | Selectable with LED indication, 9 locations | |
| External Keyboard | Aux KB feature | |
| Expression Pedal Assign | Synth Filter and multiple effect parameters | |
| Programs | Program Memory | 500 locations |
| Program Organization | 20 banks with 25 programs each | |
| Live Mode | 5 Live programs | |
| Organize | Available for programs | |
| Transposition & Tuning | Global Transpose | +/- 6 semitones |
| Program Transpose | +/- 6 semitones | |
| Global Fine Tune | +/- 50 Cents | |
| Organ Section | Organ Models | B3, B3+Bass, Soft B3, Vox, Farfisa, and Pipe |
| Polyphony | Full polyphony | |
| Drawbars | Physical drawbars with LED indicators | |
| Organ Presets | 2 Organ manual Presets and Live Drawbars | |
| B3 Percussion | Percussion Controls with Poly option | |
| Vibrato/Chorus | B3 Deep mode | |
| Percussion | Adjustable level and decay | |
| Tonewheel Modes | 3 selectable modes | |
| Rotary Speaker | Emulation | Based on Nord Organ 3 |
| Microphone Positions | Close, Wide, and XY | |
| Bass Wide | Stereo option | |
| Drive | Dedicated tube Drive control | |
| Stop Position | User adjustable Fix Angle option | |
| Piano Section | Piano Categories | Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord, Misc/Mallet |
| Piano Library | Compatible with Nord Piano Library | |
| Polyphony | 120 voices | |
| String Resonance | Yes | |
| Timbre | Individual settings for acoustic, electric, and clavinet sounds | |
| Keyboard Touch | 3 settings | |
| Dynamic Compression | Yes | |
| Unison | 3 amount options | |
| Synth Section | Synthesis | Sample, Analog, and FM |
| Sample Library | Compatible with Nord Sample Library | |
| Preset Library | Analog and FM sounds | |
| Envelopes | Amp and Filter/FM ADR/ASR | |
| Filter/FM Envelope | Velocity and Amount controls | |
| Analog/Sample Filter | Low Pass with Cutoff and Resonance | |
| FM Controls | Amount and Partial | |
| Playing Modes | Mono and Legato | |
| Glide | Yes | |
| Unison | 3 amount options | |
| Dynamics | 3 amp velocity options | |
| Vibrato | Adjustable Rate, Amount, and Delay | |
| Synth Vibrato | Real time control | |
| Polyphony | 30+ voices | |
| Effects | Architecture | Dedicated Effects for Organ, Piano, and Synth |
| FX Focus | FX Bypass option | |
| Expression Control | Expression Pedal assignable to most effect parameters | |
| Modulation Effects | Mod 1 | Pan1, Pan2, Tremolo, Wah, Ring Modulator |
| Mod 1 Controls | Dedicated Rate and Amount | |
| Mod 2 | Phaser, Flanger, Chorus, Vibe, Ensemble | |
| Mod 2 Controls | Dedicated Rate and Amount | |
| Stereo Width | Wide option | |
| EQ & Amp Simulation | Amp Models | Twin, Small, Suitcase, JC, and Brit |
| Drive | Yes | |
| Equalizer | 3 band with sweepable mid | |
| EQ Range | +/- 15 dB gain/attenuation | |
| Delay | Tempo | Tap function |
| Controls | Feedback and Dry/Wet | |
| Feedback Filters | Low Pass, High Pass, and Band Pass | |
| Ping Pong | 3 amount options | |
| Analog Mode | Yes | |
| Global Mode | Yes | |
| Compressor | Control | Amount |
| Global Option | Yes | |
| Reverb | Global Reverb | Layer Send mode for individual reverb level per section |
| Reverb Types | Spring, Room, Stage, Hall, Cathedral | |
| Spring Reverb | Positioned before Rotary Speaker | |
| Chorale | Available for all reverb types | |
| Reverb Modes | Bright/Dark | |
| Control | Dry/Wet | |
| Connectivity | Audio Outputs | 2 × 1/4 in unbalanced L and R |
| Monitor Input | 1 × 1/8 in stereo | |
| Headphone Output | 1 × 1/4 in stereo | |
| Expression Pedal Input | 1 × 1/4 in TRS | |
| Sustain Pedal | 1 × 1/4 in | |
| Rotary Control / Foot Switch | 1 × 1/4 in | |
| MIDI In | 5 pin DIN | |
| MIDI Out | 5 pin DIN | |
| USB | Type B for USB MIDI, software updates, and sound transfer | |
| Power | Power Connection | IEC C14 |
| Physical Information | Dimensions | 42.1 × 5.1 × 13.4 in (1070 × 130 × 341 mm) |
| Net Weight | 28.66 lb (13 kg) |
Ideal Applications for the Nord Electro 7 HP
The Nord Electro 7 HP is designed for live pianists and keyboard performers who prioritize responsive hammer action while also needing professional Organ, Piano, and Synth sounds, immediate physical controls, flexible effects, and a portable 73 key format for stage performance and sound creation.
Purchase Information
Items Included
Nord Electro 7 HP Stage Keyboard.
Product Information
Brand: Nord
Model: AMS-NELECTRO7-HP
UPC: 834035001806
