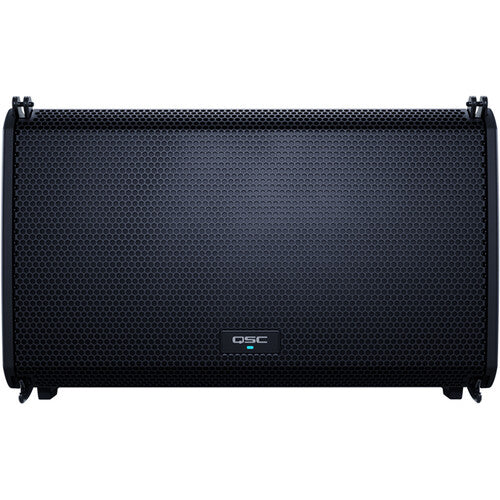

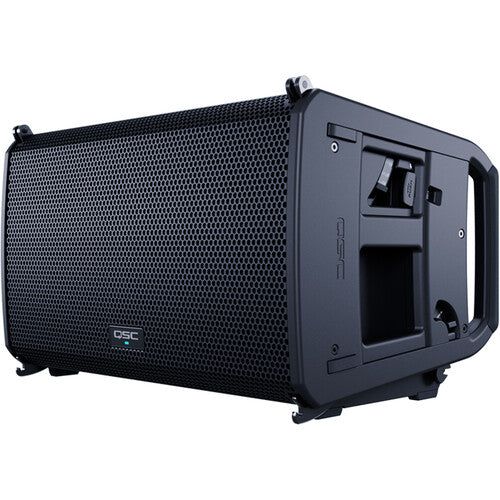

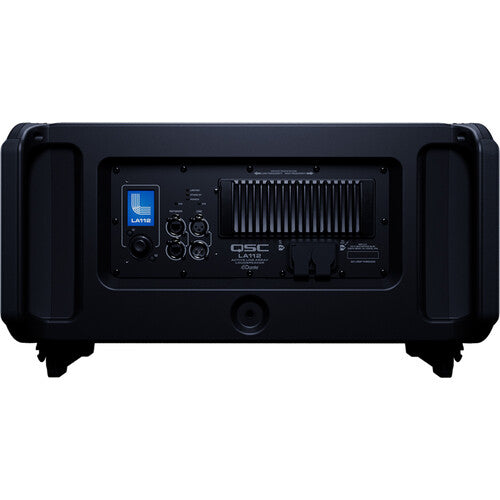

QSC LA 112 2400W Active 12" Line Array Loudspeaker (Black)
$3,399.00 USD
SKU: QSC-LA112
- In-Stock Items - Processed within 1-2 Business Days
- Manufacturer Direct Items allow additional processing time.
Audio professionals seeking a next-generation intelligent line array system will appreciate the QSC LA112. This active line array loudspeaker module combines advanced technology, refined engineering, and exceptional ease of use in a fast-deploy package, making it ideal for live venues, fixed installations, mobile entertainers, AV rental companies, and event production.
QSC KLA12 Features
- For Plug-and-Play High-Tech AV Installs
- 12" Woofer
- 1.75" Compression Tweeter
- 1600W + 800W Class-D Amplifier Module
- XLR and powerCON I/O Connectors
- QSC LEAF Waveguide

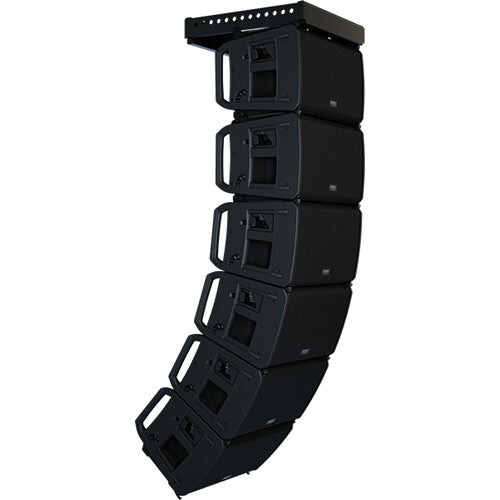

- QSC RapidDeploy Rigging Technology
- QSC AWARE + QSC SysNav
- Rugged ABS Enclosure
- Flexible Deployment
Specifications
| Model | LA112 |
|---|---|
| Configuration | Two-way active line array loudspeaker |
| LF Transducer | 305 mm (12-inch), cone |
| HF Transducer | 2x 44 mm (1.75-inch), compression drivers with Polyimide diaphragm |
| Frequency Response (-6 dB) | 58 Hz - 20 kHz |
| Frequency Range (-10 dB) | 53 Hz - 20 kHz |
| Nominal Coverage Angle | 90° H x 15° V |
| Maximum Rated SPL1 (peak) | 136 dB @1 m |
| Amplifier (peak) | Class D, LF 1600 W / HF 800 W |
| Cooling | Convection cooling |
| Controls | Rotary push encoder 2 x Push buttons (Menu, ID) |
| Display Screen | 61 mm (2.4-inch) Full color display area (240 x 320 pixels) |
| Indicators | Power LED Limiter active LED Standby active LED 2 x Signal LED |
| Connectors | XLR Female (Analog In) XLR Male (Analog Thru) 2 x RJ45 EtherCON (Dante® and QSC SysNav™ In/Thru) 2 x PowerCON TRUE1 (AC Power Inlet/Outlet) |
| AC Power Input | Universal power supply 100 – 240 VAC, 50 – 60 Hz |
| AC Power Consumption2 | 100 VAC, 1.8 A / 120 VAC, 1.5 A / 230 VAC, 1 A |
| Enclosure Material | Impact Resistant ABS |

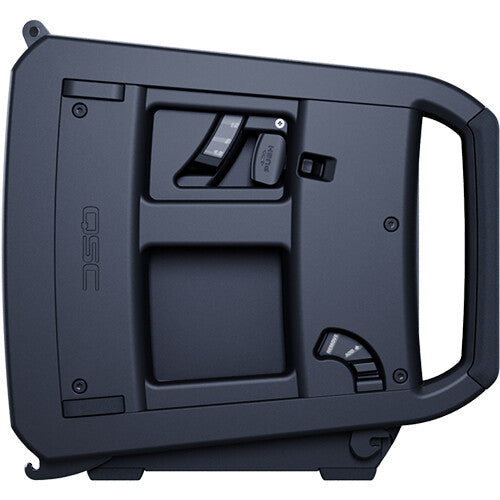

| Attachment Points | QSC RapidDeploy™ rigging system 1x M10 (on rear panel for pull-back) |
| Color | Black (RAL 9011) |
| Grille | 16 GA Powder coated steel |
| Dimensions (H × W × D) | 392 x 630 x 417 mm 15.4 x 24.8 x 16.4 inches |
| Net Weight | 21.4 kg (47.2 lb) |
| Supplied Accessories | 1 x PowerCON TRUE1 power cable |
| Battery Chemistry | Lithium manganese dioxide |
| Regulatory | UL, CE, FCC Class A |
Packaging Info
- Package Weight - 60lbs
- Box Dimensions (LxWxH) - 26.5 x 20.25 x 18.25"
What's Included
- (1) PowerCON TRUE1 Power Cable
1 Measured at 1 meter, on axis, in full space, using IEC268 filtered noise.
2 1/8 power is representative of current draw with typical music program material with occasional clipping.Dante is a registered trademark of Audinate Pty Ltd. EtherCON and PowerCON are registered trademarks of Neutrik.
Windows is a registered trademark of Microsoft. MacOS and iOS are registered trademarks of Apple.
Specifications subject to change without prior notice.
